Hyundai Santa Fe (TM): Starting System / Starter Relay. Repair procedures
| Inspection |
| 1. |
Turn ignition switch OFF and disconnect the battery negative (-) terminal.
|
| 2. |
Remove the fuse box cover.
|
| 3. |

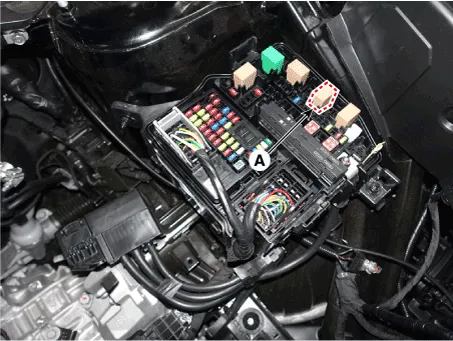

Remove the starter relay (A).
|
| 4. |

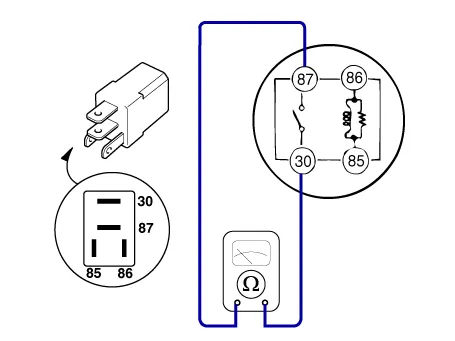

Check for continuity between the terminals (30 and 87) using an ohmmeter.
|
||||||||||
| 5. |

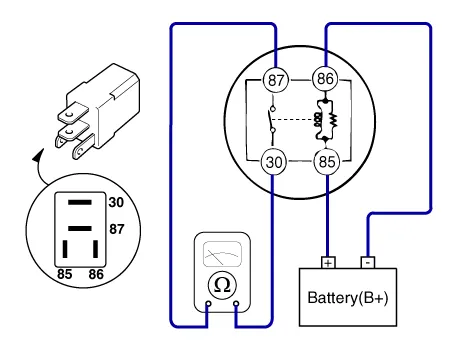

Apply 12V to the terminal 85 and ground to the terminal 86 and then
check for continuity between the terminals (30 and 87).
|
||||||||||
| 6. |
Install the starter relay.
|
| 7. |
Install the fuse box cover.
|
Removal • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
