Hyundai Santa Fe (TM): Surround View Monitor (SVM) / Surround View Monitor (SVM) Camera. Repair procedures
| Removal |
|
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the front bumper cover.
(Refer to Body - "Front Bumper Cover")
|
| 3. |

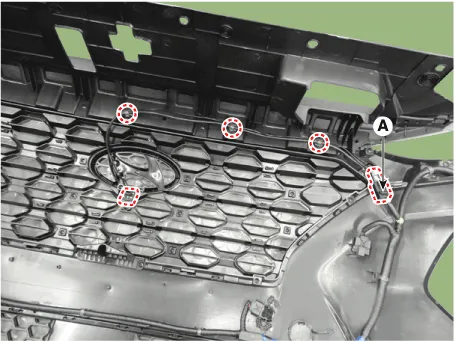

Remove the pantocscpic camera after loosening the mounting screws and
connector.
|
| 1. |
Remove the tailgate trim.
(Refer to Body - "Tailgate Trim")
|
| 2. |

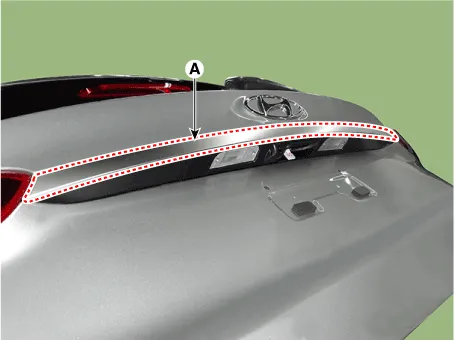

Remove the tailgate ganish (A).
|
| 3. |

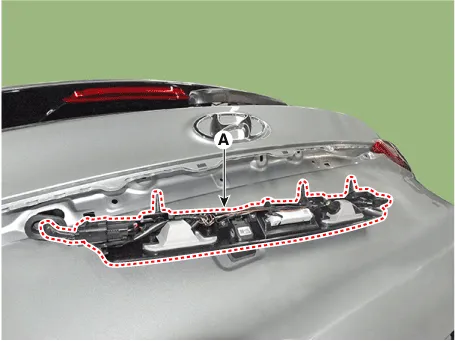

Remove the tailgate switch assembly.
|
| 4. |

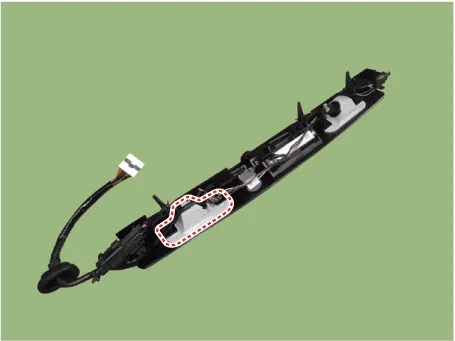

Remove the license lamp LH.
|
| 5. |

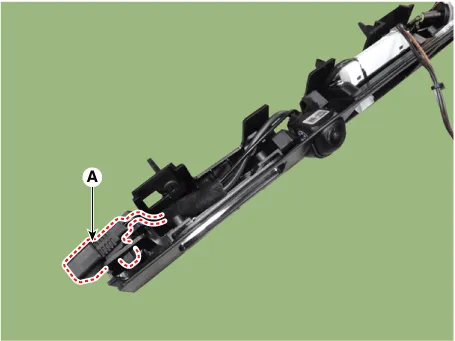

Disconnector the connector (A) and then remove the rear view camera.
|
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the mirror.
(Refer to Power Door Mirror - "Power Door Mirror Actuator")
|
| 3. |
Remove the outside mirror cover.
(Refer to Power Door Mirror - "Power Door Mirror Actuator")
|
| 4. |

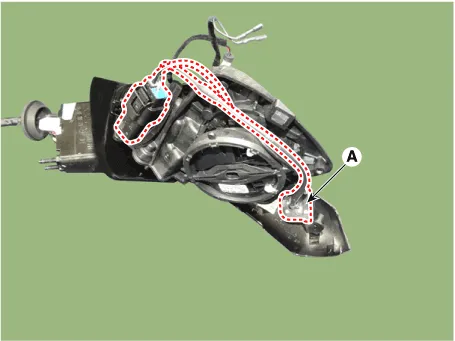

Disconnect the camera conenctor and then remove the camera (A).
|
| Installation |
| 1. |
Install the front camera.
|
| 2. |
Install the front bumper cover.
|
| 1. |
Install the rear camera.
|
| 2. |
Install the tail gate switch assemblyl.
|
| 3. |
Install the tail gate trim.
(Refer to Body - "Tail Gate Trim")
|
| 1. |
Install the left/right camera.
|
| 2. |
Install the door mirror.
|
Components [Ultra Optical Camera - RH/LH] [Ultra Optical Camera - Front] [Ultra Optical Camera - Rear]
Removal • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
