Hyundai Santa Fe (TM): Blower / Climate Control Air Filter. Repair procedures
| Replacement |
| 1. |
Remove the glove box.
(Refer to Body - "Glove Box")
|
| 2. |

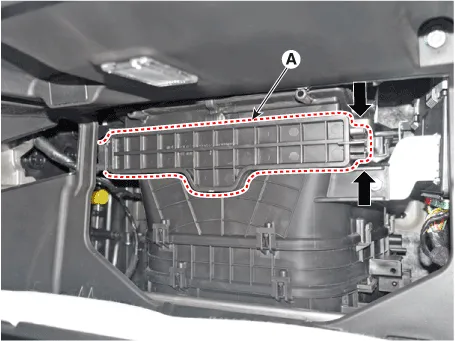

Remove the filter cover (A) by pressing the knob.
|
| 3. |

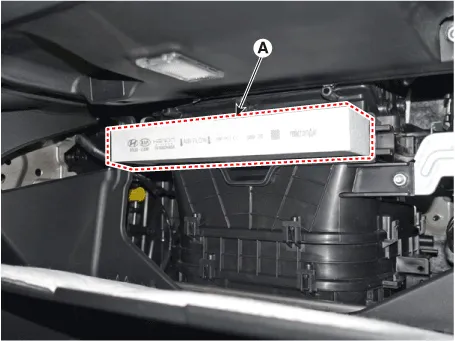

Replace the air filter (A) with a new one according to the direction
of air filter.
|
Description The climate control air filter is located in the blower unit. It eliminates foreign materials and odor. The particle filter performs a role as an odor filter as well as a conventional dust filter to ensure comfortable interior environment.
Description The intake actuator is located at the blower unit. It regulates the intake door by a signal from the control unit. Pressing the intake selection switch will shift between recirculation and fresh air modes.
