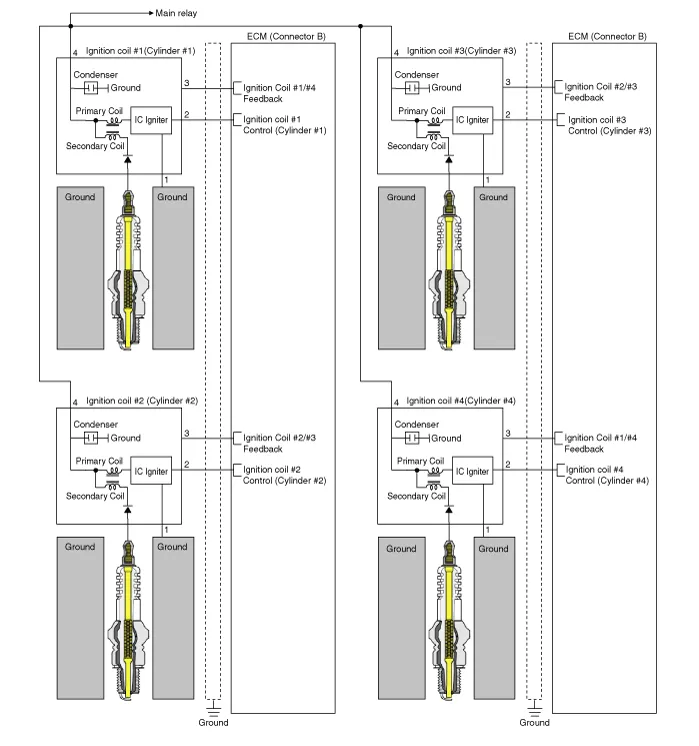

Hyundai Santa Fe (TM): Ignition Coil / Schematic diagrams

| Ignition Coil Connector
Terminal Function |
| Ignition Coil Terminal Function |
*Connected to number
Ignition Coil #1 (Cylinder #1)
Pin No
|
Description
|
Connected to
|
1
|
Ground
|
Chassic
|
2
|
Ignition Coil #1 Control
|
ECM Connector [93]
|
3
|
Ignition Coil #1/#4 Feedback
|
ECM Connector [82]
|
4
|
Battery Power (B+)
|
Main Relay
|
Ignition Coil #2 (Cylinder #2)
Pin No
|
Description
|
Connected to
|
1
|
Ground
|
Chassic
|
2
|
Ignition Coil #2 Control
|
ECM Connector [47]
|
3
|
Ignition Coil #2/#3 Feedback
|
ECM Connector [105]
|
4
|
Battery Power (B+)
|
Main Relay
|
Ignition Coil #3 (Cylinder #3)
Pin No
|
Description
|
Connected to
|
1
|
Ground
|
Chassic
|
2
|
Ignition Coil #3 Control
|
ECM Connector [116]
|
3
|
Ignition Coil #2/#3 Feedback
|
ECM Connector [105]
|
4
|
Battery Power (B+)
|
Main Relay
|
Ignition Coil #4 (Cylinder #4)
Pin No
|
Description
|
Connected to
|
1
|
Ground
|
Chassic
|
2
|
Ignition Coil #4 Control
|
ECM Connector [24]
|
3
|
Ignition Coil #1/#4 Feedback
|
ECM Connector [82]
|
4
|
Battery Power (B+)
|
Main Relay
|
Specification
Item
Specification
Rated Voltage (V)
13.5V
Secondary Coil [Engine 1000RPM standard]
Input voltage (V)
13.
