Hyundai Santa Fe (TM): Ignition Coil / Repair procedures
| Removal |
| 1. |
Turn the ignition switch OFF and disconnect the battery (-) terminal.
|
| 2. |
Remove the engine cover.
(Refer to Engine Mechanical System - "Engine Cover")
|
| 3. |

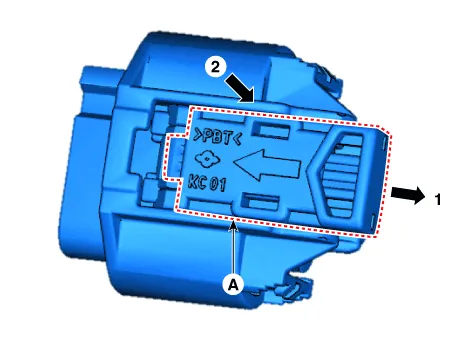

Remove the ignition coil connectors (A).
|
| 4. |

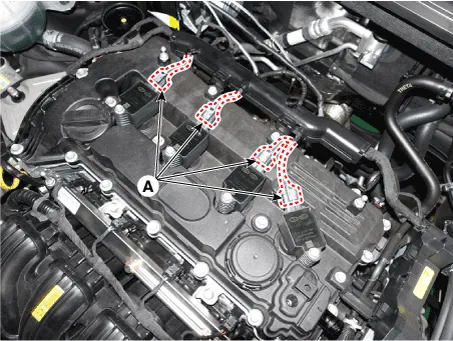

Remove the ignition coils (A).
|
| Installation |
| 1. |
Install in the reverse order of removal.
|
| Cleaning |
| 1. |
Prepare the soft cloth.
|
| 2. |

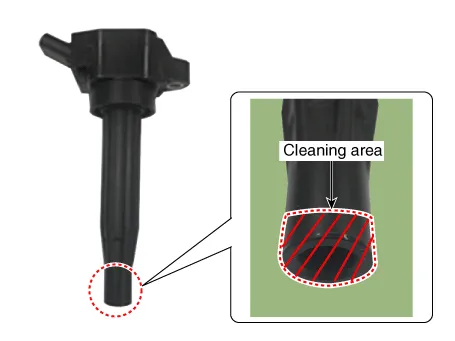

Wipe the contaminants inside and outside the bottom of the ignition
coil boot with the soft cloth as shown in the following figure.
|
|
Circuit Diagram Ignition Coil Connector Terminal Function Ignition Coil Terminal Function *Connected to number Ignition Coil #1 (Cylinder #1) Pin No Description Connected to 1 Ground Chassic 2 Ignition Coil #1 Control ECM Connector [93] 3 Ignition Coil #1/#4 Feedback ECM Connector [82] 4 Battery Power (B+) Main Relay Ignition Coil #2 (Cylinder #2) Pin No Description Connected to 1 Ground Chassic 2 Ignition Coil #2 Control ECM Connector [47] 3 Ignition Coil #2/#3 Feedback ECM Connector [105] 4 Battery Power (B+) Main Relay Ignition Coil #3 (Cylinder #3) Pin No Description Connected to 1 Ground Chassic 2 Ignition Coil #3 Control ECM Connector [116] 3 Ignition Coil #2/#3 Feedback ECM Connector [105] 4 Battery Power (B+) Main Relay Ignition Coil #4 (Cylinder #4) Pin No Description Connected to 1 Ground Chassic 2 Ignition Coil #4 Control ECM Connector [24] 3 Ignition Coil #1/#4 Feedback ECM Connector [82] 4 Battery Power (B+) Main Relay
Description A spark plug is a device for delivering electric current from an ignition system to the combustion chamber of a spark-ignition engine to ignite the compressed fuel/air mixture therein by means of an electric spark, while containing combustion pressure within the engine.
