Hyundai Santa Fe (TM): Driver Parking Assistance System / Parking Collision-Avoidance Assist (PCA). Schematic diagrams
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Advanced Driver Assistance System (ADAS) / Driver Parking Assistance System / Parking Collision-Avoidance Assist (PCA). Schematic diagrams
| Schematic Diagrams |

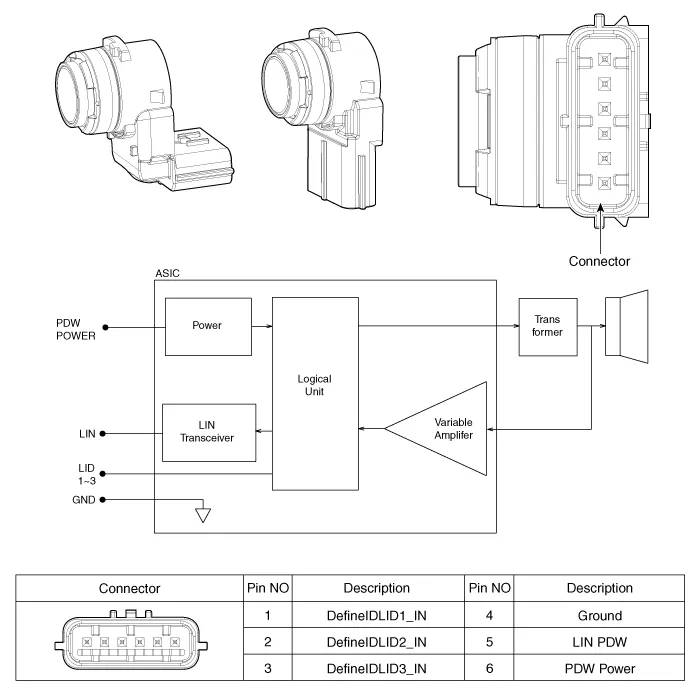

Ultrasonic Sensor

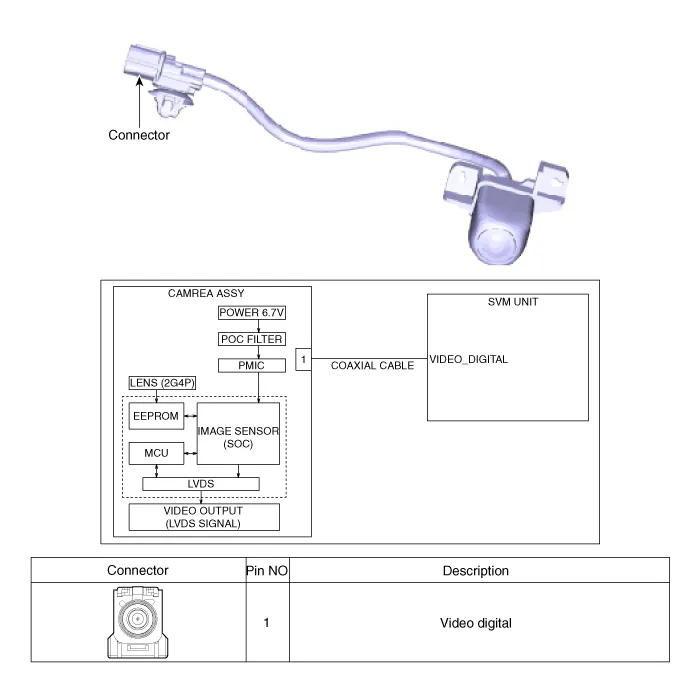

Rear view camera
Components and Components Location
Removal Parking Collision-Avoidance Assist (PCA) Unit 1. Disconnect the negative (-) battery terminal. 2.
