| Removal |
|
| 1. |
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
|
| 2. |

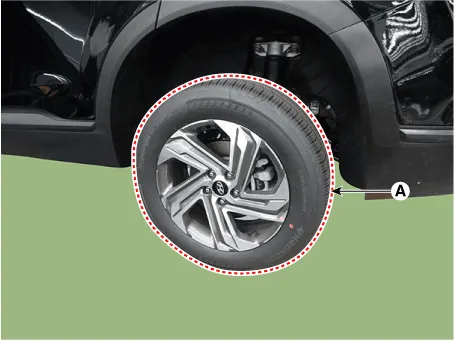

Remove the rear wheel and tire (A) from rear hub.
|
| 3. |
Remove the rear brake caliper.
(Refer to Brake System - "Rear Disc Brake")
|
| 4. |

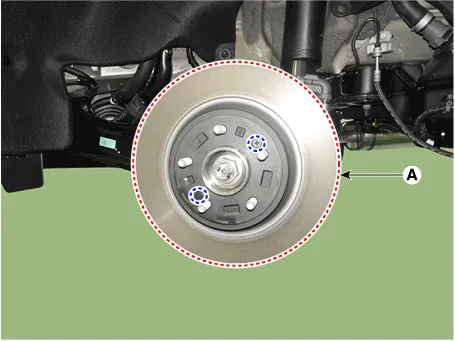

Loosen the screw and then removing the rear brake disc (A).
|
| 5. |

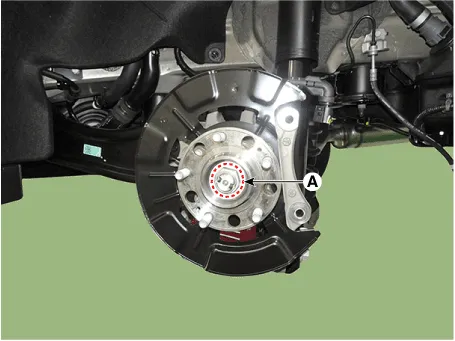

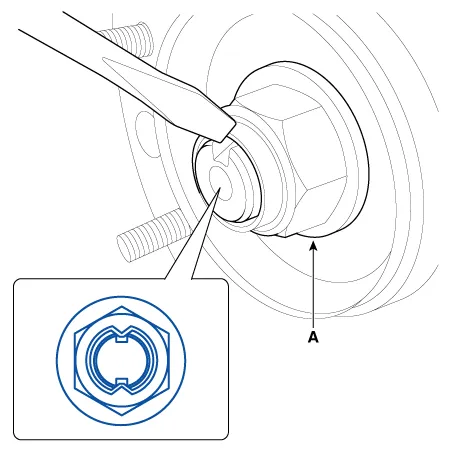

Loosen the driveshaft caulking nut (A) from the rear hub.
|
| 6. |

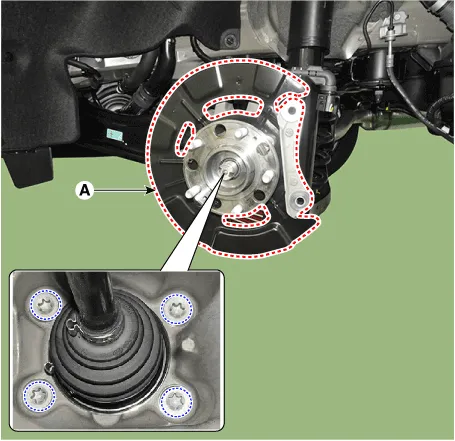

Remove the rear hub assembly and dust cover (A) after loosening the
mounting bolts.
|
| 7. |

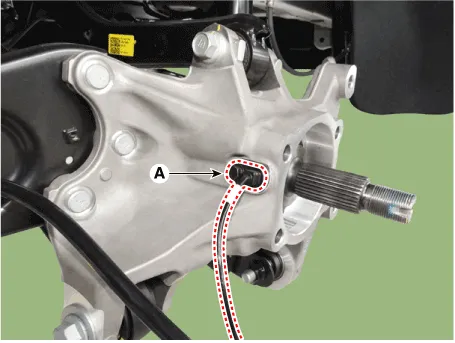

Remove the rear wheel speed sensor (A) after loosening the mounting
bolt.
|
| 8. |
Remove the rear upper arm from the rear carrier after loosening the
bolt and nut (A).
|
| 9. |

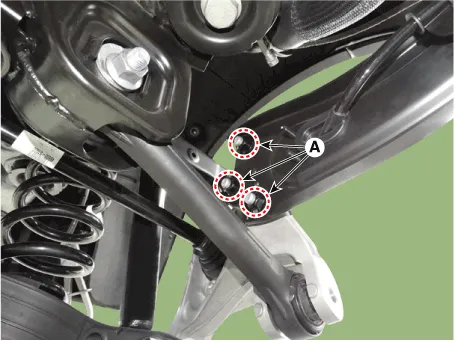

Remove the trailing arm from the rear carrier after loosening the mounting
nuts (A).
|
| 10. |

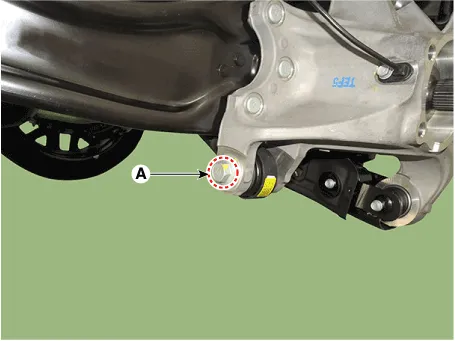

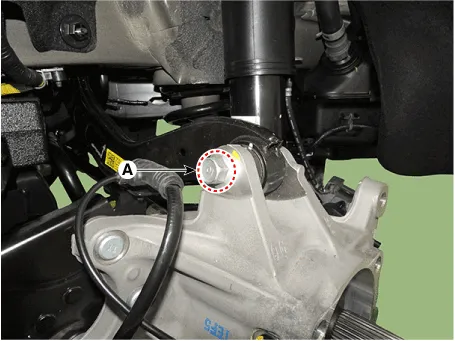

Remove the rear assist arm from the rear carrier after loosening the
bolt and nut (A).
|
| 11. |

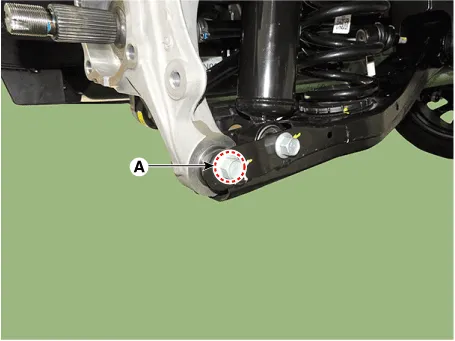

Remove the rear lower arm from the rear carrier after loosening the
bolt and nut (A).
|
| 12. |

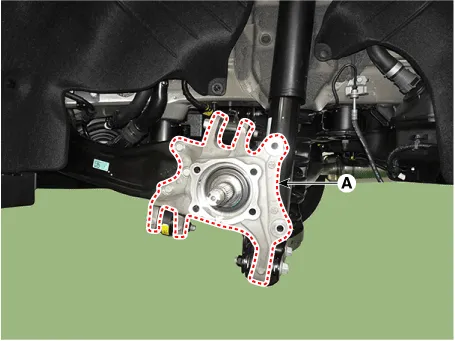

Remove the rear carrier (A).
|
| Inspection |
| 1. |
Check the hub for cracks and the splines for wear.
|
| 2. |
Check the rear axle carrier for cracks.
|
| 3. |
Replace only the sensor cap when the warning light turns on due to a
defective sensor cap of the hub bearing.
(Refer to Brake System - "Rear Wheel Speed Sensor")
|
| Installation |
| 1. |
To install, reverse the removal procedures.
|
| 2. |
Check the alignment.
(Refer to Suspension System - "Alingment")
|
Components 1. Rear brake disc 2. Rear hub assembly 3. Dust cover 4. Rear carrier assembly
