Hyundai Santa Fe (TM): Rear Axle Assembly / Components and components location
| Components |

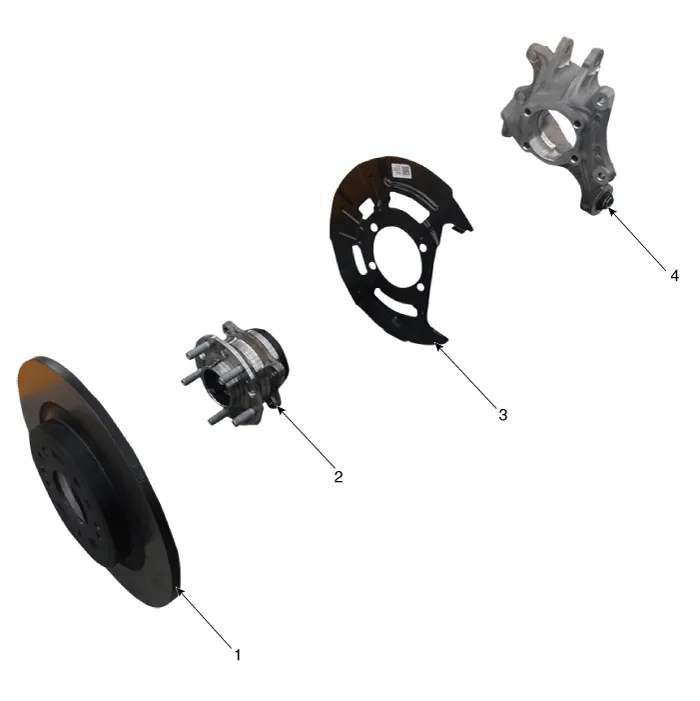

| 1. Rear brake
disc 2. Rear hub assembly |
3. Dust cover 4. Rear carrier assembly |
Removal • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
