Hyundai Santa Fe (TM): Fuses And Relays / Relay Box (Engine Compartment). Components and components location

Component Location

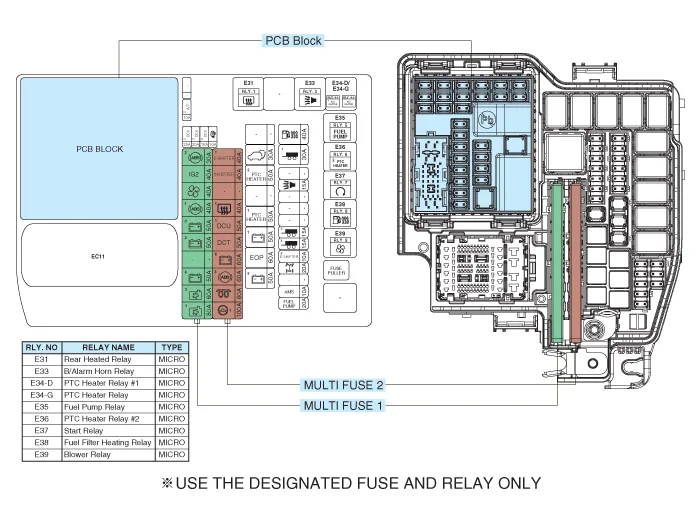

E/R Junction Block

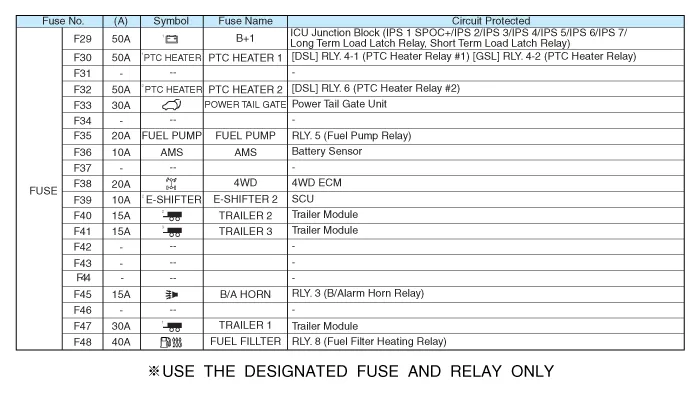

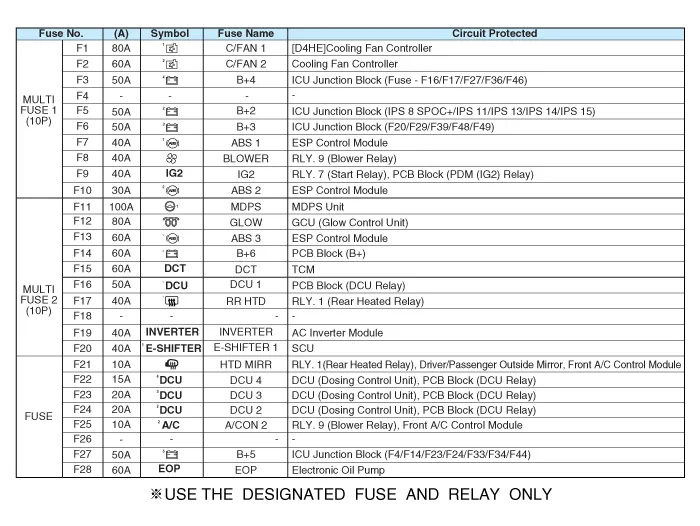

Circuit (E/R Junction Block)

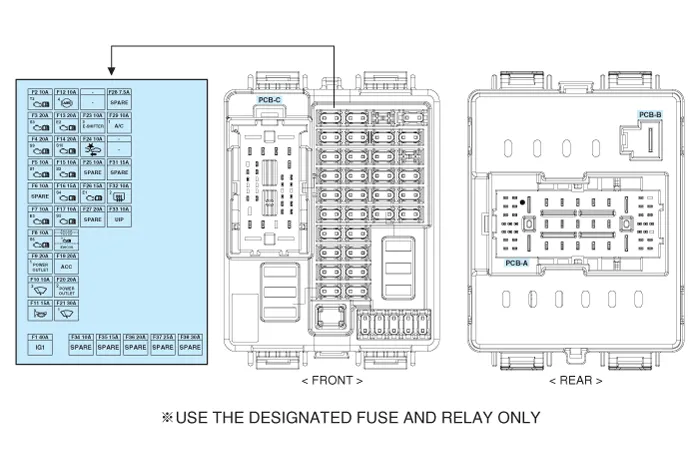

PCB BLOCK

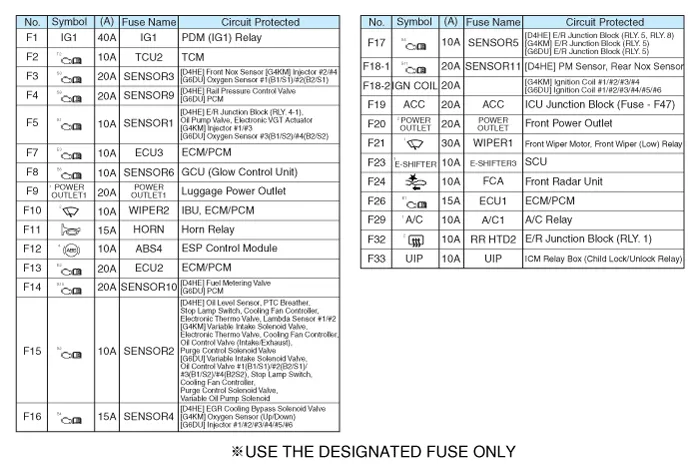

Circuit (PCB Block)

Component Location 1. Engine room relay box 2. Sub relay box 3. ICU Junction block 4.

Inspection 1. Disconnect the negative (-) battery terminal. 2. Pull out the relay from the engine compartment relay box.
