| Component Location |

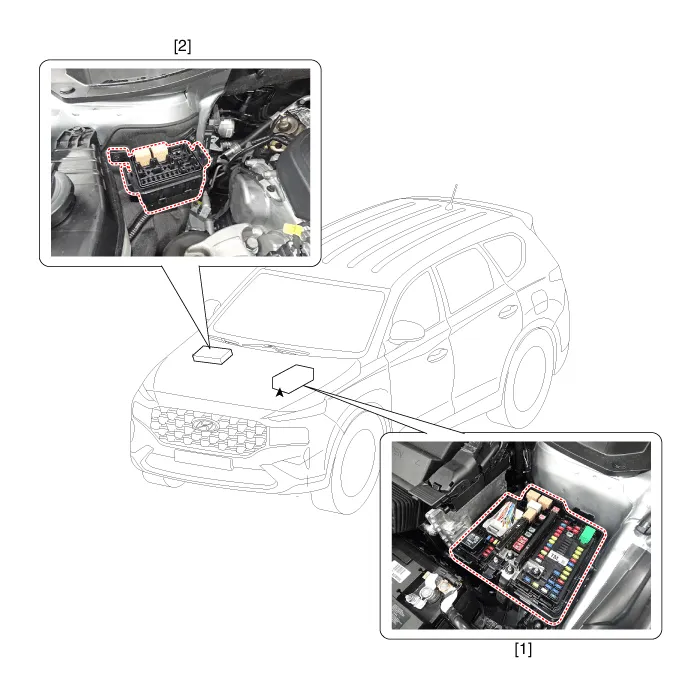

| 1. Engine room
relay box |
2. Sub relay
box |

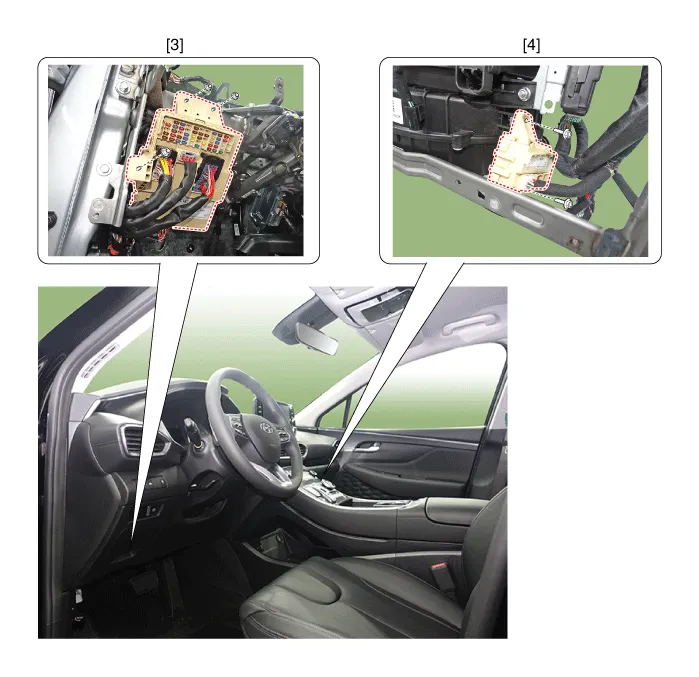

| 3. ICU Junction
block |
4. ICM relay
box |
Component Location E/R Junction Block Circuit (E/R Junction Block) Circuit (E/R Junction Block) PCB BLOCK Circuit (PCB Block)
