Hyundai Santa Fe (TM): Rear View Monitor (RVM) / Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Advanced Driver Assistance System (ADAS) / Rear View Monitor (RVM) / Repair procedures

Removal
1.
Remove the tailgate trim.
(Refer to Body - "Tailgate Trim")
2.

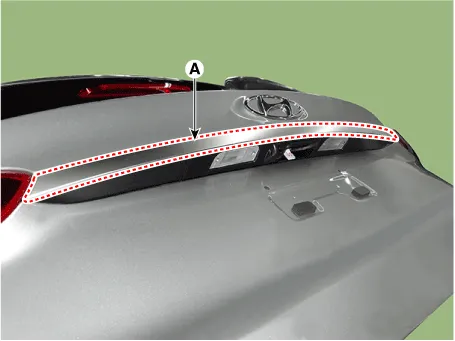

Remove the tailgate ganish (A).
3.
Remove the tailgate switch assembly.
4.

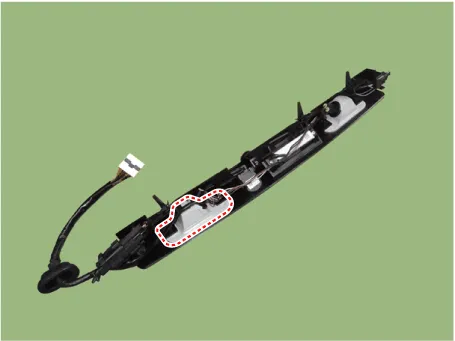

Remove the license lamp LH.
5.

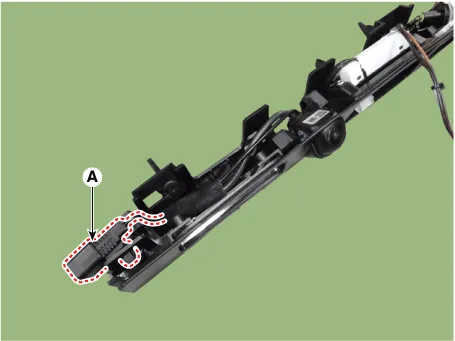

Disconnector the connector (A) and then remove the rear view camera.
Installation
1.
Install the rear view camera.
2.
Install the and tailgate trim.

    Circuit Diagram
