Removal and Installation

•
Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
Roll Road Bracket
1.
Remove the engine room under cover.
(Refer to Engine And Transaxle Assembly - "Engine Room Under Cover")
2.

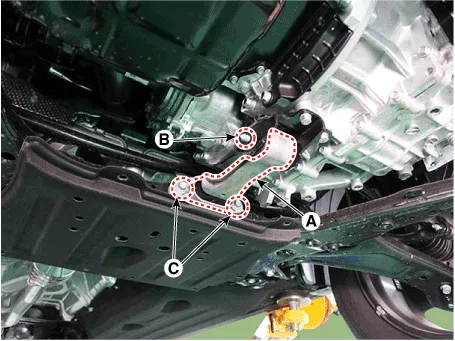

Remove the roll rod bracket (A).
Tightening torque
Bolt (B) :
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
Bolts (C) :
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

3.

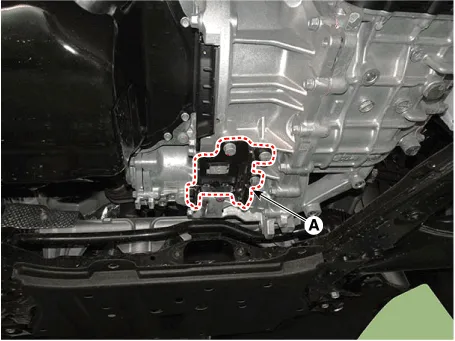

Remove the roll rod mounting support bracket (A).
Tightening torque :
49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft)

Engine Mounting Bracket
1.
Remove the engine room under cover.
(Refer to Engine and transaxle Assembly - "Engine Room Under Cover")
2.
Remove the engine cover.
(Refer to Engine and transaxle Assembly - "Engine Cover")
3.
Install the jack to the edge of oil pan to support the engine.

•
Insert the rubber block between jack and oil pan.
4.

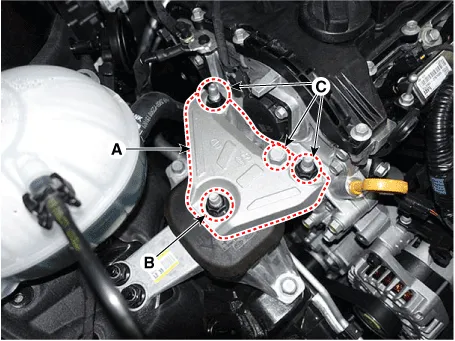

Remove the engine mounting support bracket (A).
Tightening torque
Bolt, Nuts (C) : 63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5lb-ft)

5.
Remove the reservoir tank.
(Refer to Cooling System - "Reservoir Tank")
6.

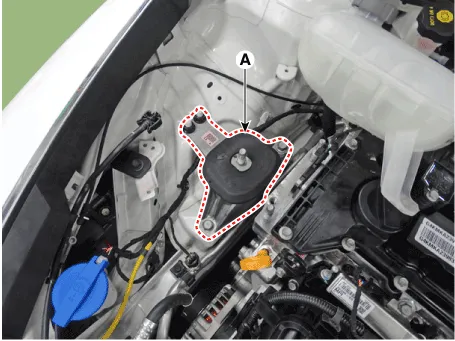

Remove the engine mounting bracket (A).
Tightening torque :
63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb-ft)

7.
Install in the reverse order of removal.
Transaxle Mounting Bracket
1.
Remove the engine room under cover.
(Refer to Engine And Transaxle Assembly - "Engine Room Under Cover")
2.
Remove the air duct.
(Refer to Intake and Exhaust System - "Air Cleaner")
3.
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "Air Cleaner")
4.
Remove the battery and tray.
(Refer to Engine Electrical System - "Battery")
5.
Install the jack to the edge of transaxle.

•
Insert the rubber block between jack and transaxle.
6.

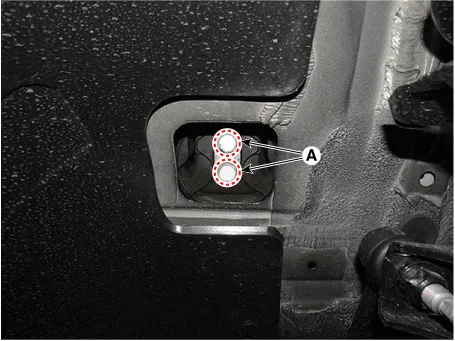

Remove the transaxle mounting bolts (A).
Tightening torque :
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

7.

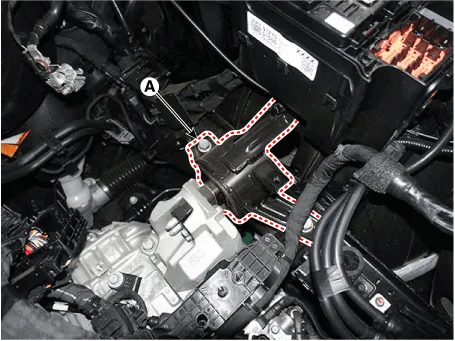

Remove the transaxle mounting bracket (A).
Tightening torque :
63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb-ft)

8.
Install in the reverse order of removal.

    Components 1. Transaxle mounting bracket 2. Roll rod bracket 3. Engine mounting bracket 4. Engine mounting support bracket

    Removal    • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
