Removal

•
Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")

•
Use fender covers to avoid damaging painted surfaces.
•
To avoid damage, unplug the wiring connectors carefully while holding the connector portion.

•
Mark all wiring and hoses to avoid misconnection.
•
For release the fuel system pressure before remove the engine assembly, start the engine without fuel pump relay. And then turn off the ignition switch after engine stops.
1.
Disconnect the battery negative terminal.
2.
Remove the engine cover.
(Refer to Engine And Transaxle Assembly - "Engine Cover")
3.
Remove the air duct and air cleaner assembly.
(Refer to Intake and Exhaust System - "Air Cleaner")
4.
Remove the battery and battery tray.
(Refer to Engine Electrical System - "Battery")
5.
Remove the engine room under corver.
(Refer to Engine And Transaxle Assembly - "Engine Room Under Cover")
6.
Loosen the drain plug and drain the coolant.
(Refer to Cooling System - "Coolant")
7.
Recover the refrigerant and then remove the high pressure pipe and low pressure pipe.
(Refer to Heateng, Ventilation, Air conditioning - "Compressor")
8.

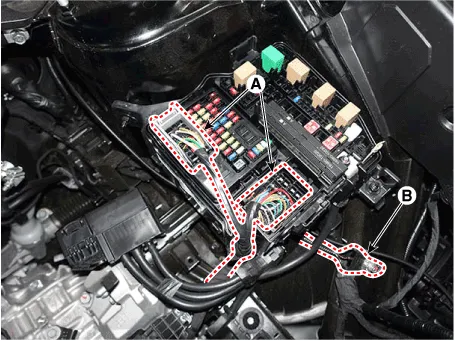

Disconnect the fuse box connectors (A) and ground cable (B).
Tightening torque :
B : 10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb-ft)

9.

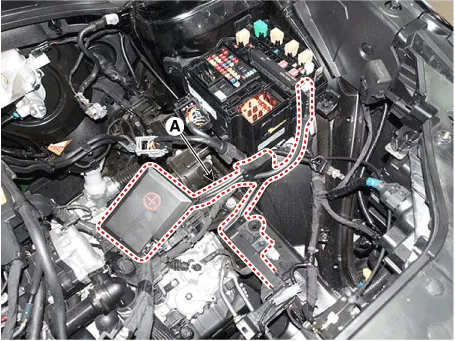

Disconnect the (+) wiring cable (A).
Tightening torque :
7.8 - 10.8 N.m (0.8 - 1.1 kgf.m, 5.8 - 8.0 lb-ft)

10.

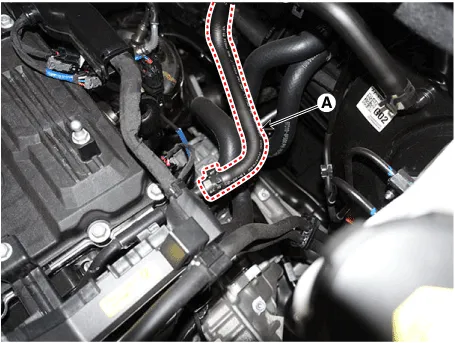

Disconnect the brake booster vacuum hose (A).
11.

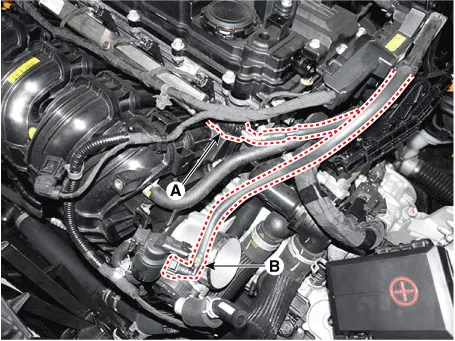

Disconnect the fuel hose (A) and the purge control solenoid valve (PCSV) hose (B).
12.

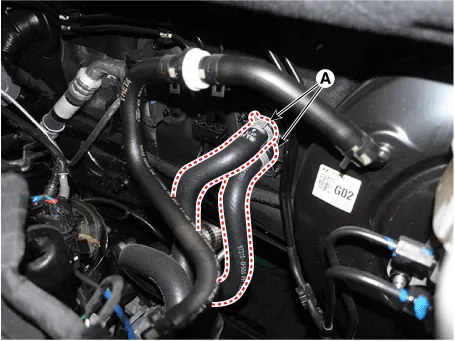

Disconnect the heater hoses (A).
13.

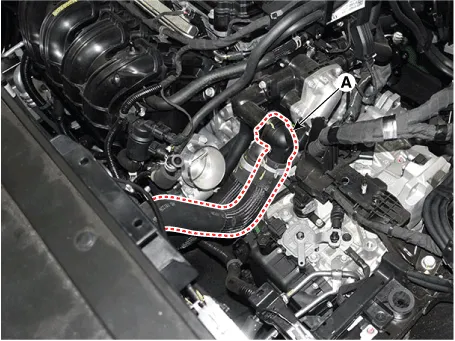

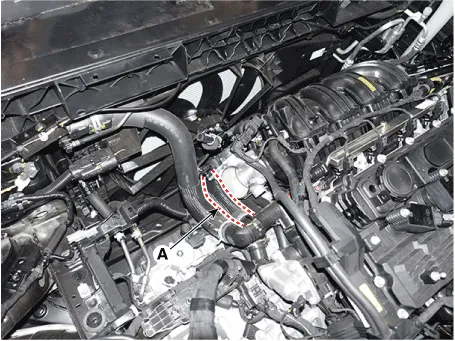

Disconnect the radiator upper hose (A).
14.
Disconnect the raditor lower hose (A).
15.
Remove the front muffler.
(Refer to Intake and Exhaust System - "Muffler")
16.

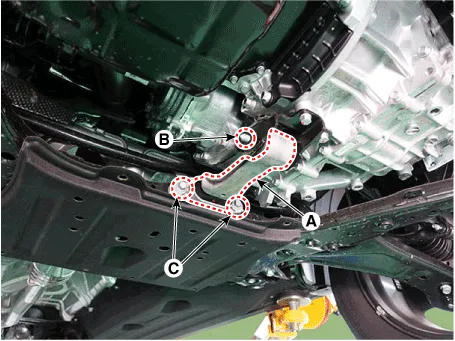

Remove the roll rod bracket (A).
Tightening torque
Bolt (B) :
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
Bolt (C) :
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

17.

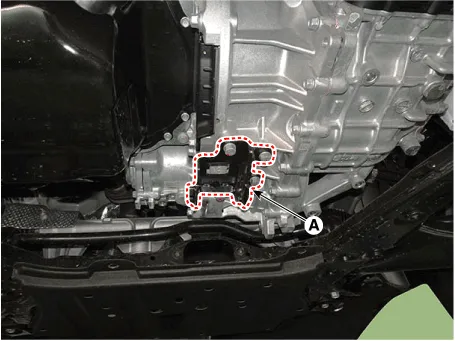

Remove the roll rod support bracket (A).
Tightening torque :
49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft)

18.
Remove the sub frame assembly.
(Refer to Suspension System - "Sub Frame")
19.
Support the engine and transaxle assembly with a floor jack.
20.

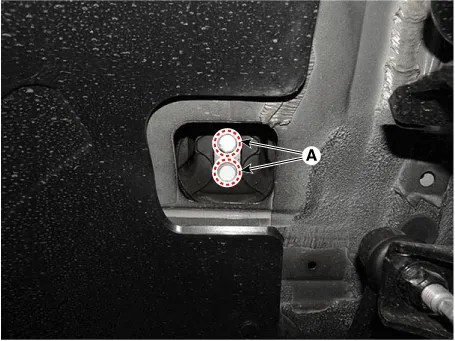

Remove the steering U-joint mounting bolts.
(Refer to Steering System - "Steering Column and Shaft")
21.
Remove the engine ground cable (A).
Tightening torque :
10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb-ft)

22.

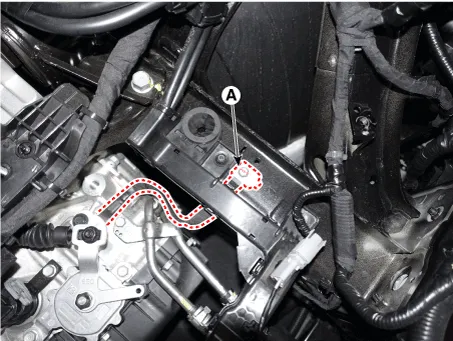

Disconnect the ground cable (A).
Tightening torque :
10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb-ft)

23.

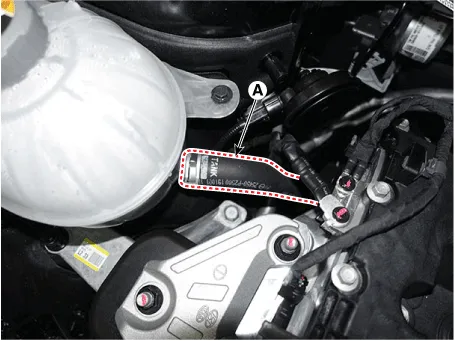

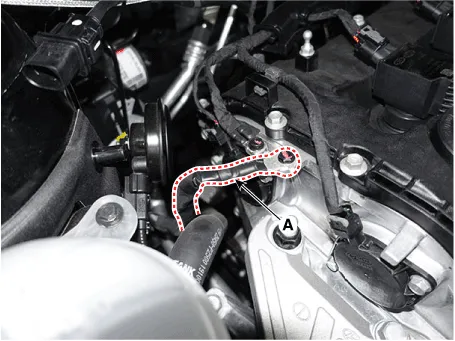

Disconnect the reservoir tank water hose (A).
24.

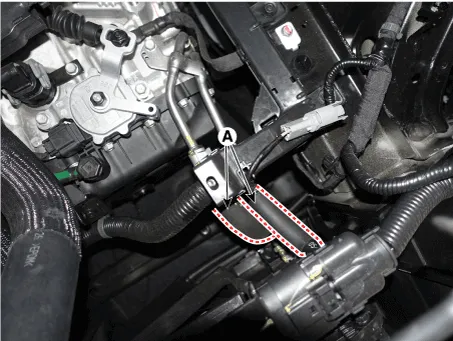

Disconnect the ATF cooler hoses (A).
25.

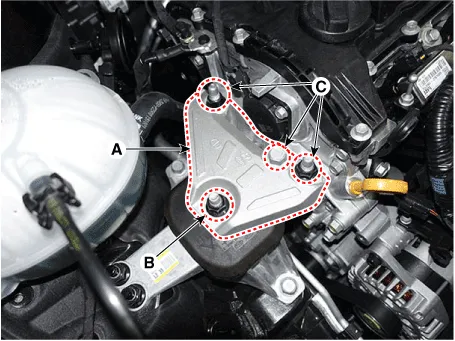

Remove the engine mounting support bracket (A).
Tightening torque :
Nut (B) : 88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)
Bolt, Nuts (C) : 63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb-ft)

26.
Remove the transaxle mounting bracket through bolt (A).
Tightening torque :
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

27.
Remove the engine and transaxle assembly by lifting vehicle.

•
When remove the engine and transaxle assembly, be careful not to damage any surrounding parts or body components.
28.
Install in the reverse order of removal.

•
Refill a radiator and a reservoir tank with engine coolant.
(Refer to Cooling System - "Coolant")
•
Check the engine oil level.
If necessary, refill engine with engine oil
•
Check the transaxle oil level.
If necessary, refill a transaxle with fluid.
•
Charging the refrigerant gas.
•
Inspect for fuel leakage.
