Hyundai Santa Fe (TM): Front View Camera System / Lane Safety Button. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Advanced Driver Assistance System (ADAS) / Front View Camera System / Lane Safety Button. Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the crash pad lower pannel.
(Refer to Body - "Crash Pad Lower Panel")
3.

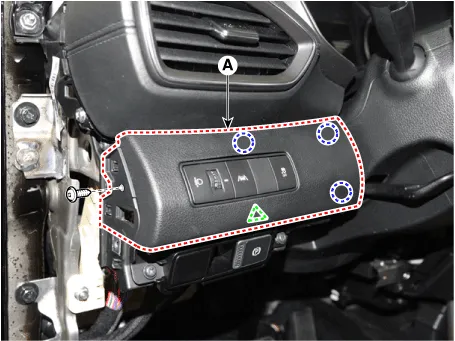

Loosen the mounting screw and remove the crash pad garnish [LH] (A).
4.
Disconnect the crash pad garnish [LH] connector (A).
5.

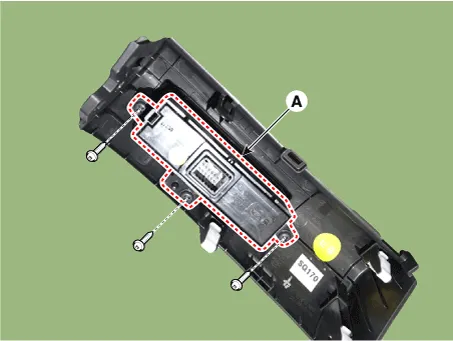

Loosen the mounting screws and remove the crash pad lower switch (A).
Installation
1.
Install the crash pad lower panel switch.
2.
Install the crash pad lower panel.
3.
Connect the negative (-) battery terminal.
