Hyundai Santa Fe (TM): Engine And Transaxle Assembly / Engine Mounting. Components and components location

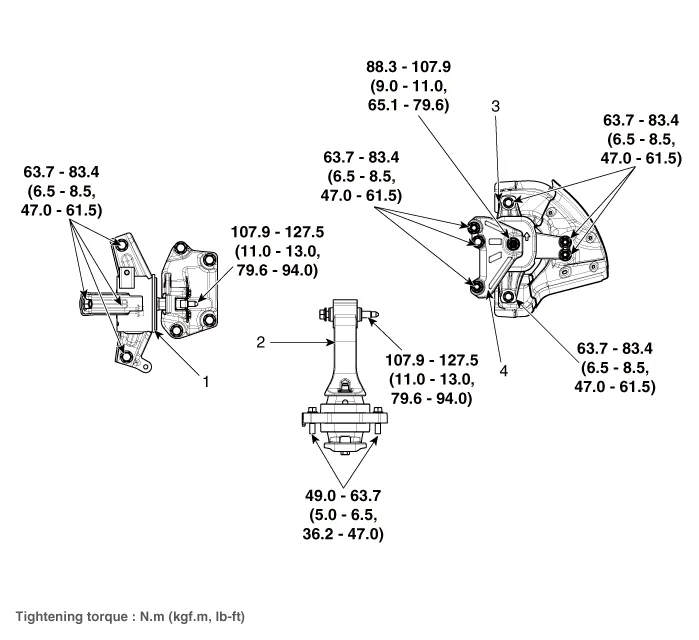

| Components |
| 1. Transaxle
mounting bracket 2. Roll rod bracket |
3. Engine mounting
bracket 4. Engine mounting support bracket |
Removal and Installation • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
Removal and Installation • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
