Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
•
Take care not to bend or scratch the trim and panels.
[Front]
1.
Remove the front door body side weatherstrip.
2.

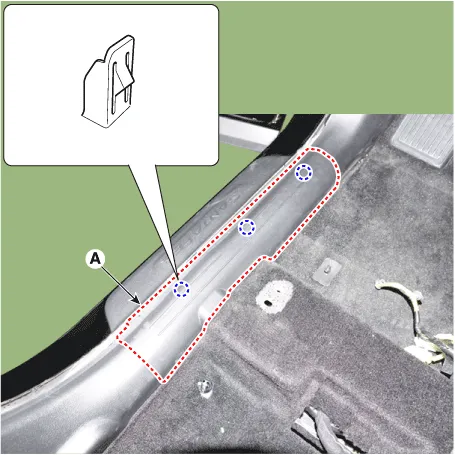

Using a screwdriver or remover and remove the front door scuff trim (A).
3.
To install, reverse removal procedure.

•
Replace any damaged clips (or pin-type retainers).
[Rear]
1.
Remove the rear door body side weatherstrip.
2.
Remove the rear seat cusion assembly.
(Refer to Rear seat -"Rear Seat Assembly")
3.

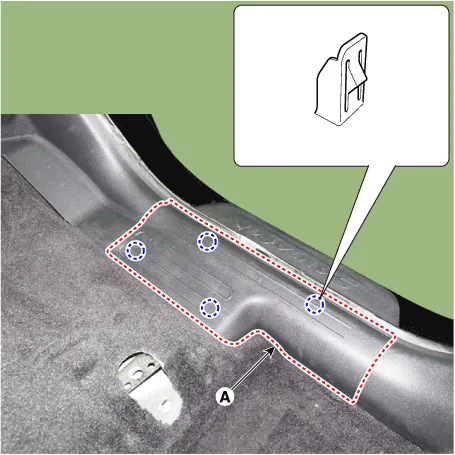

Using a screwdriver and remove the rear door scuff trim (A).
4.
To install, reverse removal procedure.

•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Front Door Scuff Trim 2. Rear Door Scuff Trim

    Component Location 1. Front Door Step Trim 2. Rear Door Step Trim
