Hyundai Santa Fe (TM): Parking Distance Warning (PDW) / Ultrasonic Sensor. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Advanced Driver Assistance System (ADAS) / Parking Distance Warning (PDW) / Ultrasonic Sensor. Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front/rear bumper.
(Refer to Body - "Front Bumper Cover")
(Refer to Body - "Rear Bumper Cover")
3.
Disconnect the connector from the parking distance warning sensor.
4.

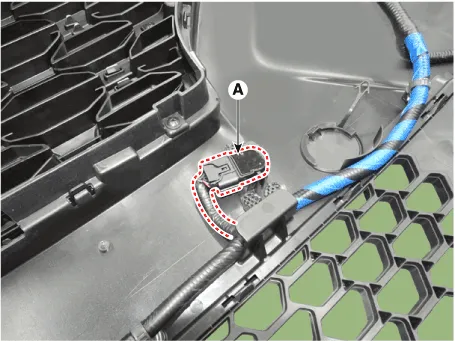

Pull out the sensor (A) by opening the sensor holder out.
Installation
1.
Install the Parking distance warning sensor after connecting the connector.
2.
Install the front/rear bumper cover.
3.
Connect the negative (-) battery terminal.
