Hyundai Santa Fe (TM): Interior Trim / Door Step Trim. Components and components location

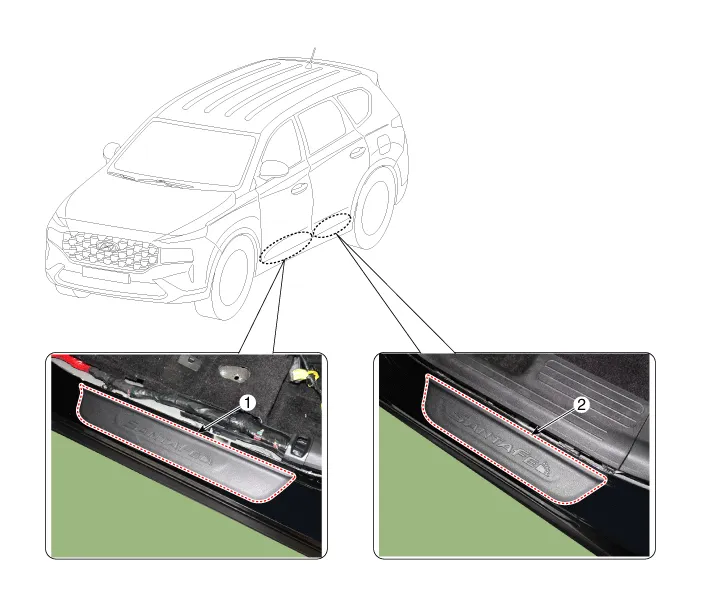

Component Location

1. Front Door Step Trim
2. Rear Door Step Trim

    Replacement    • Put on gloves to prevent hand injuries.

       • Put on gloves to protect your hands.
