Hyundai Santa Fe (TM): Rear Corner Radar System / Warning Indicator. Components and components location
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Advanced Driver Assistance System (ADAS) / Rear Corner Radar System / Warning Indicator. Components and components location

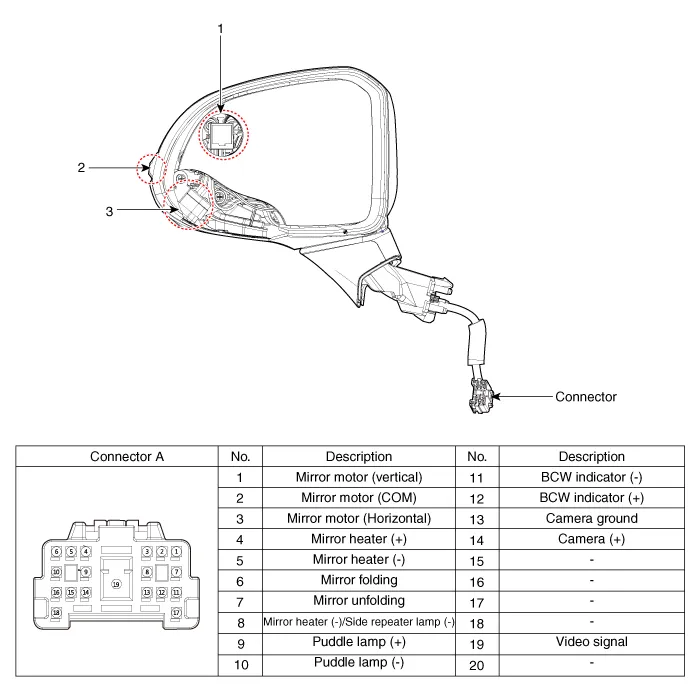

| Components |
| 1. BCW Indicator 2. Side repeater lamp |
3. SVM Camera |
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the rear bumper cover.
Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the front door trim.
