Hyundai Santa Fe: Brake System / Front Disc Brake. Components and components location

Hyundai Santa Fe (TM) 2019-2024 Service Manual / Brake System / Brake System / Front Disc Brake. Components and components location

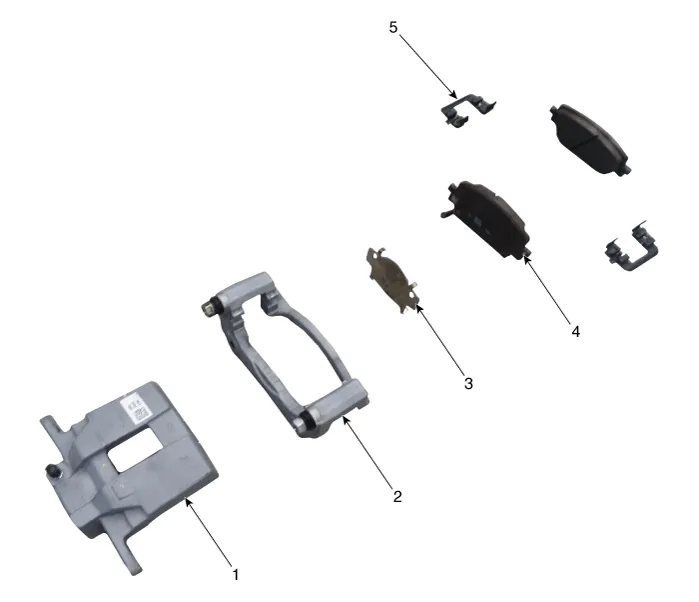

Components

1. Caliper body
2. Caliper carrier
3. Pad inner shim
4. Brake pad
5. Pad retainer

    Brake Pedal. Repair procedures

    Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel...

    Front Disc Brake. Repair procedures

    Removal    • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift...
