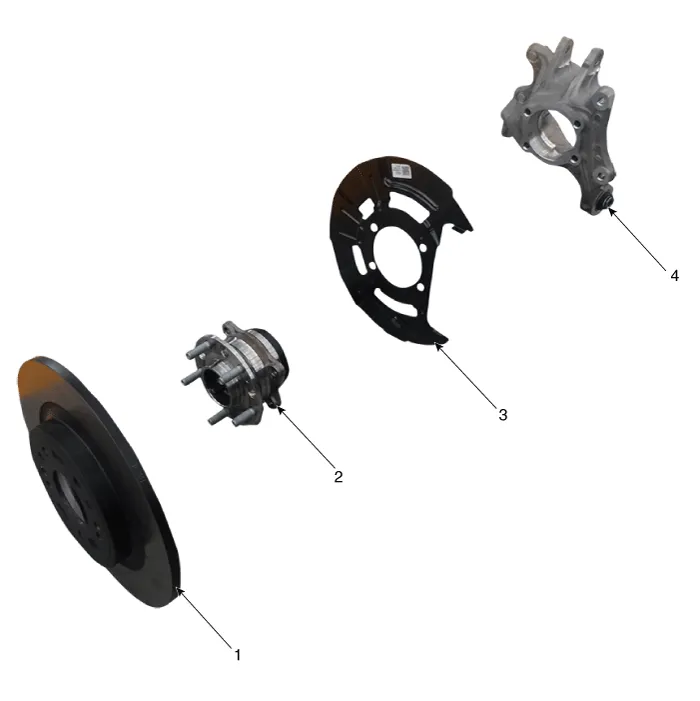

Components

1. Rear brake disc
2. Rear hub assembly
3. Dust cover
4. Rear carrier assembly

    Rear Axle Assembly

    ..

    Repair procedures

    Removal    • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift...
