Hyundai Santa Fe (TM): Front Radar System / Components and components location

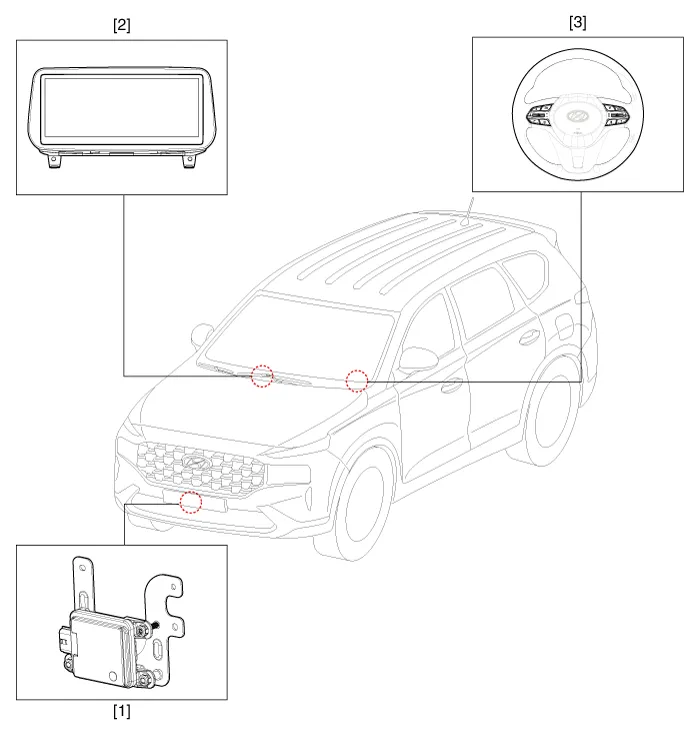

| Components Location |
| 1. Front radar
unit 2. Smart cruise control switch |
3. AVN Monitor |
Description and operation The System may be limited when • The radar sensor or camera is blocked with a foreign object or debris.
Components Location 1. Front radar unit
