Hyundai Santa Fe (TM): Rear Corner Radar System / Troubleshooting
| 1. |
In the body electrical system, failure can be quickly diagnosed by using
the vehicle diagnostic system (Diagnostic tool).
The diagnostic system (Diagnostic tool) provides the following information.
|
| 2. |
Connect the cable of Diagnostic tool to the data link connector in driver
side crash pad lower panel, and turn on the Diagnostic tool.
|
| 3. |

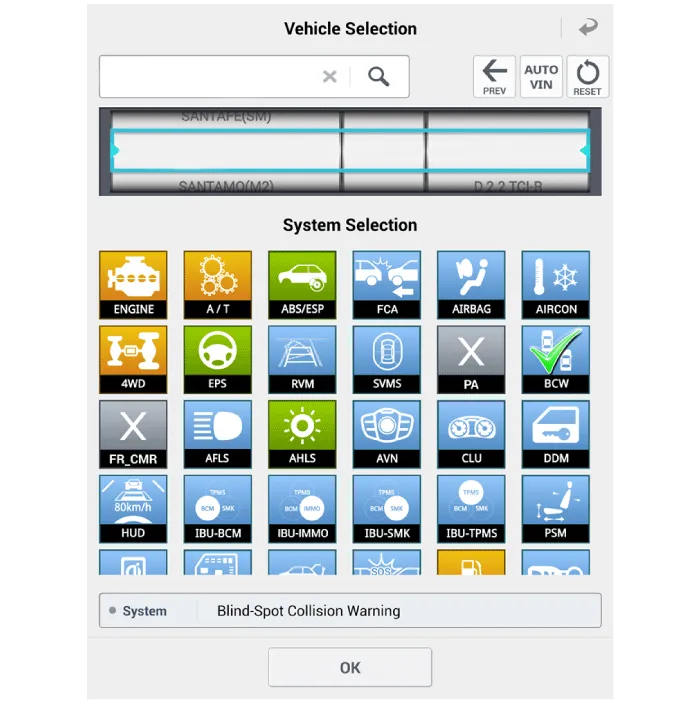

If diagnose the vehicle by Diagnostic tool, select "DTC Analysis" and
"Vehicle".
|
| 4. |

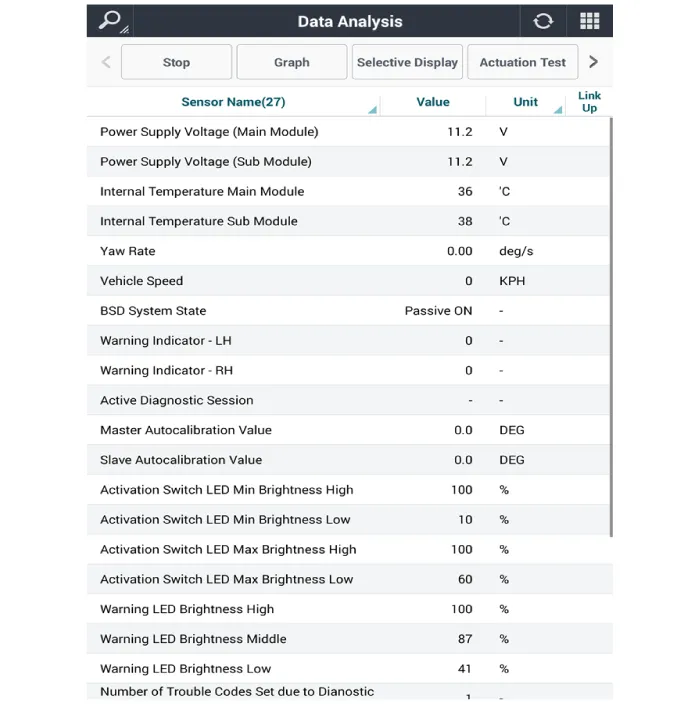

If check current status, select the "Data Analysis" .
|
| 5. |
Select "BCW", if you want to check current data of BCW system.
|
| 6. |

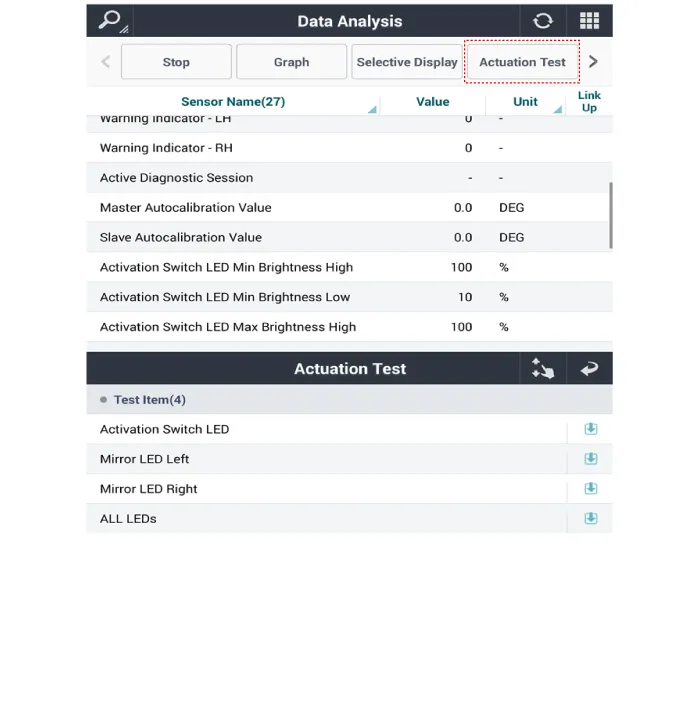

If you want to check each module operation forcefully, select "Actuation
test".
|
Components 1. Rear corner radar unit 2. Speaker (Cluster) 3. Warning indicator
Specifications [BCW, BCA] Items Blind-Spot Collision Warning (BCW) Blind-Spot Collision- Avoidance Assist (BCA) Blind-Spot Collision- Avoidance Assist (BCA) ※Parallel Exit Rated voltage DC 12V Operating voltage 9V ~ 16V Operating speed 20 ㎞/h ~ 255 ㎞/h 60 ㎞/h ~ 200 ㎞/h 0 ㎞/h ~ 3 ㎞/h Sensible distance 70m 80m Frequency 24 GHz Numbers 2 EA [RCCW, RCCA] Items Rear Cross-Traffic Collision Warning System (RCCW) Rear Cross-Traffic Collision- Avoidance Assist (RCCA) Rated voltage DC 12V Operating voltage 9V ~ 16V Operating speed 0 km/h ~ 10 km/h 0.
