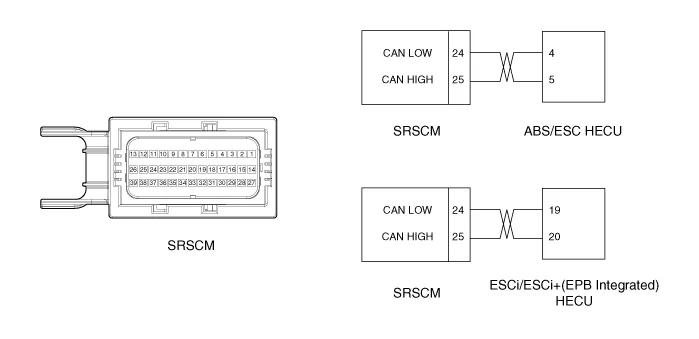

Hyundai Santa Fe (TM): ESP(Electronic Stability Program) System / Yaw-rate and G Sensor. Schematic diagrams
| Schematic Diagrams |
Specifications Description Specification Operating voltage 8 - 16V Output signal CAN Interface Operating temperature -40 - 85°C (-40 - 185°F) Yaw-rate sensor Measurement range -128 to +128°/sec Frequency response 15 - 45Hz G sensor Measurement range -1.
Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. • Disconnect the battery negative cable and wait for at least thirty seconds before beginning work.
