Removal
[G 2.5 T-GDI THETA III (Only)]
1.
Disconnect the batter ( - ) cable.
2.

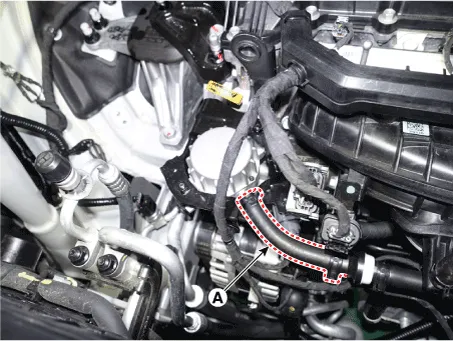

Remove the retaining clip then remove the vacuum pump hose (A).
3.

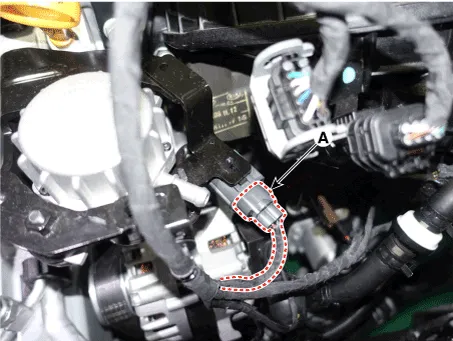

Remove the vacuum pump connector (A).
4.
Remove the bolts, then remove the vacuum pump assembly (A).
Tightening torque :
19.6 - 24.5 N·m (2.0 - 2.5 kgf·m, 14.5 - 18.1 lb·ft)

Installation
1.
Install in the reverse order of removal
