Hyundai Santa Fe (TM): Body Electrical System / Power Tailgate Module

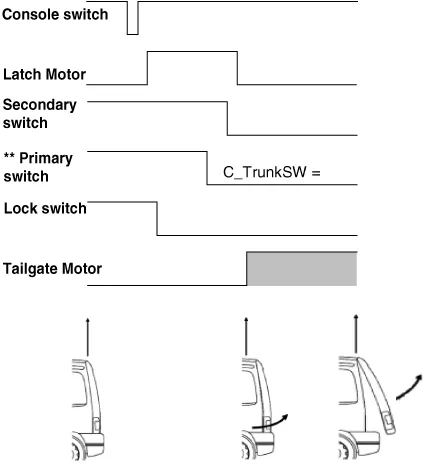

- Description and operation

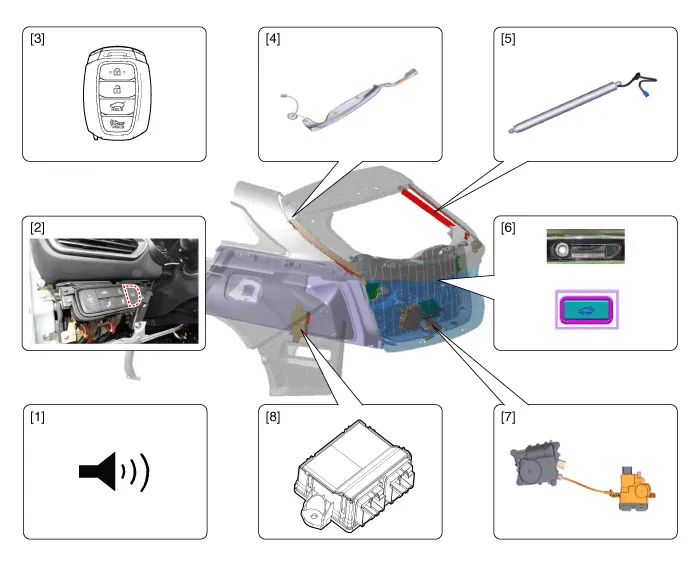

- Components and components location
- Inspection

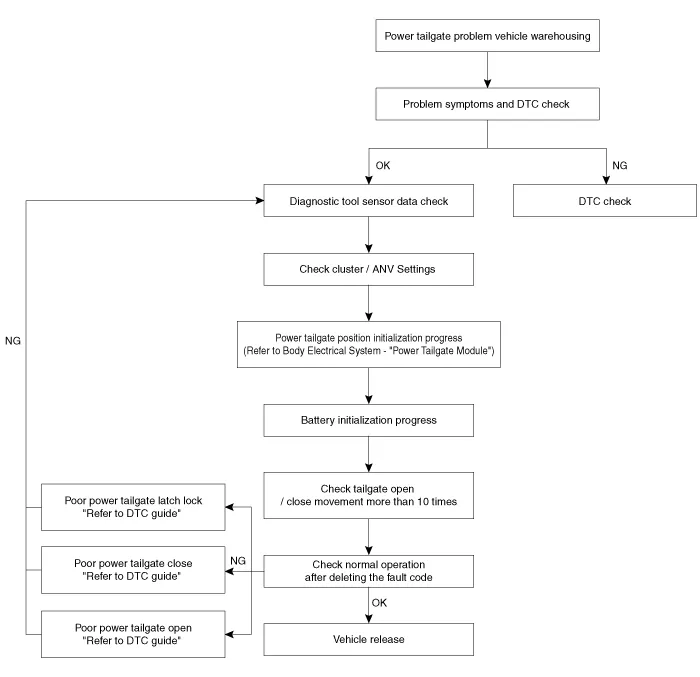

- Troubleshooting
- Power Tailgate Unit. Components and components location

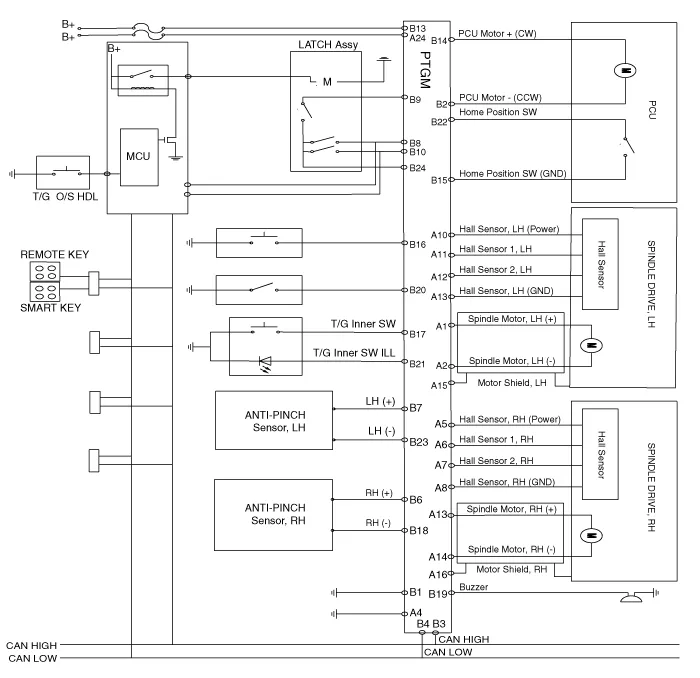

- Power Tailgate Unit. Schematic diagrams
- Power Tailgate Unit. Repair procedures
- Power Tailgate Latch. Repair procedures
- Anti-Pinch Strip. Repair procedures

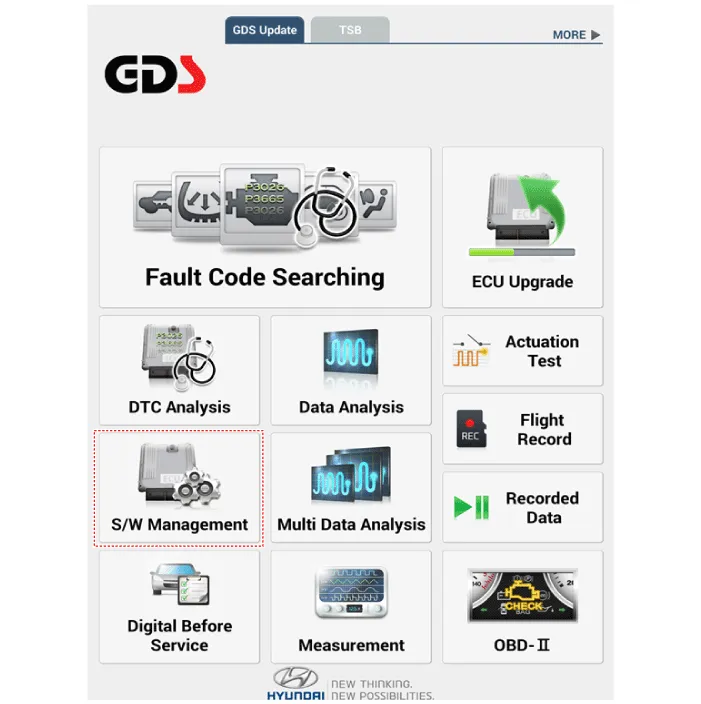

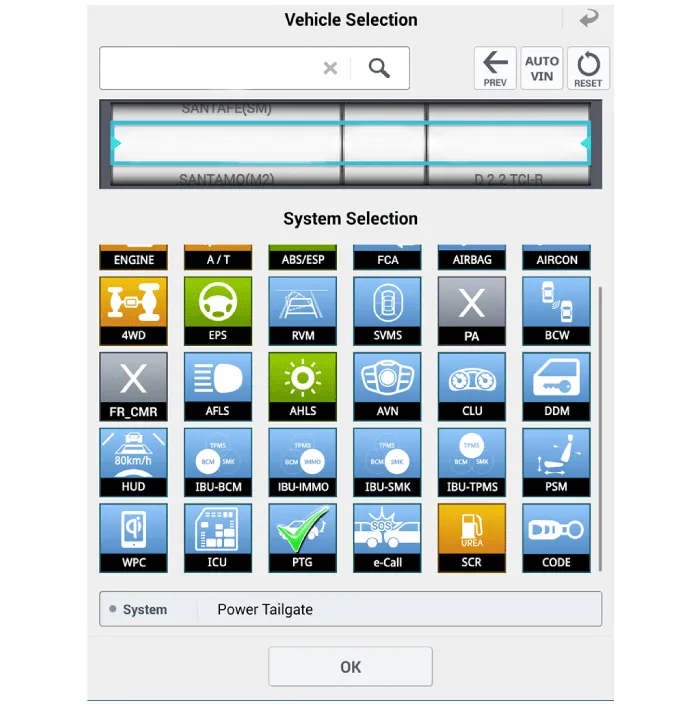

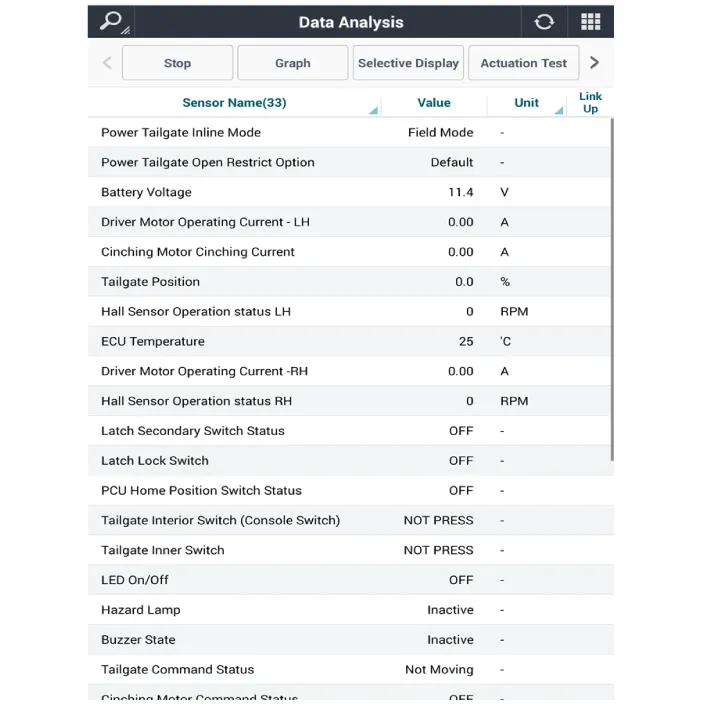

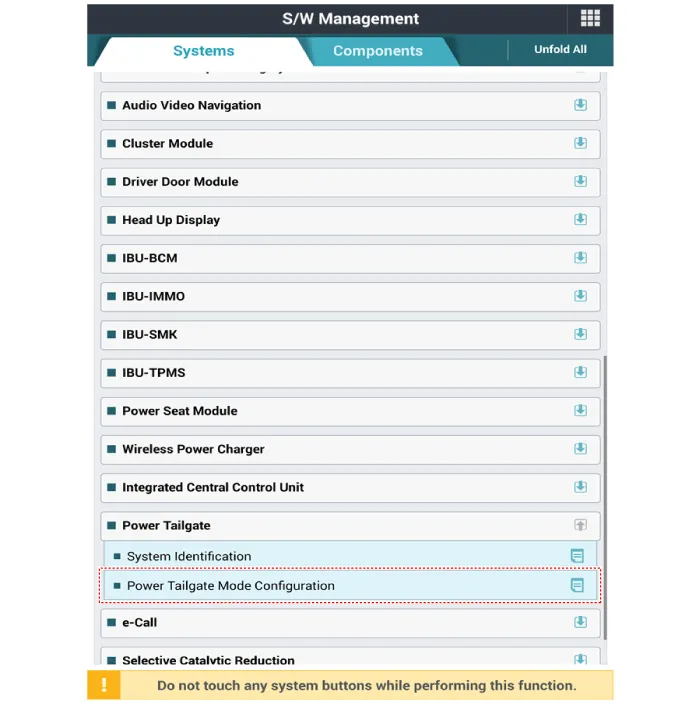

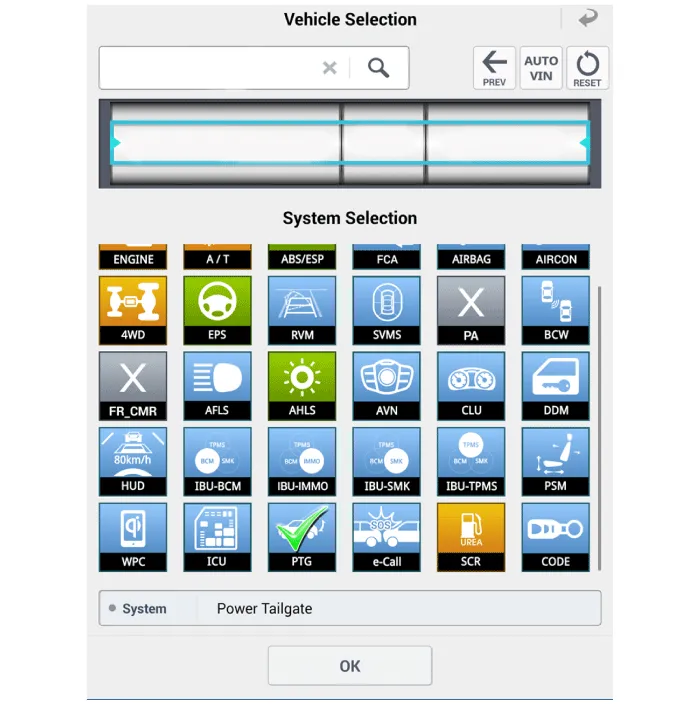

Diagnosis with diagnostic tool Diagnosis with diagnostic tool 1. In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (diagnostic tool).

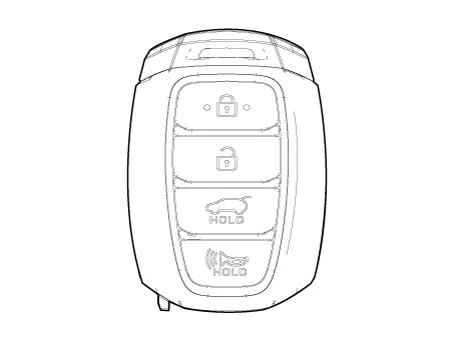

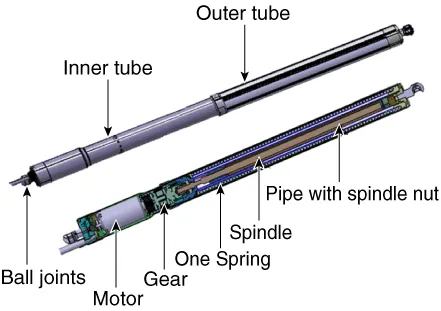

Description Power tailgate is an electro-mechanical system designed to provide power opening and closing of the tailgate through the push of a button of a remote key (fob), console switch, inner switch or an outside handle switch of the tailgate.
