Hyundai Santa Fe (TM): Body Electrical System / Auto Head Lamp Leveling Device

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Auto Head Lamp Leveling Device

Components and components location

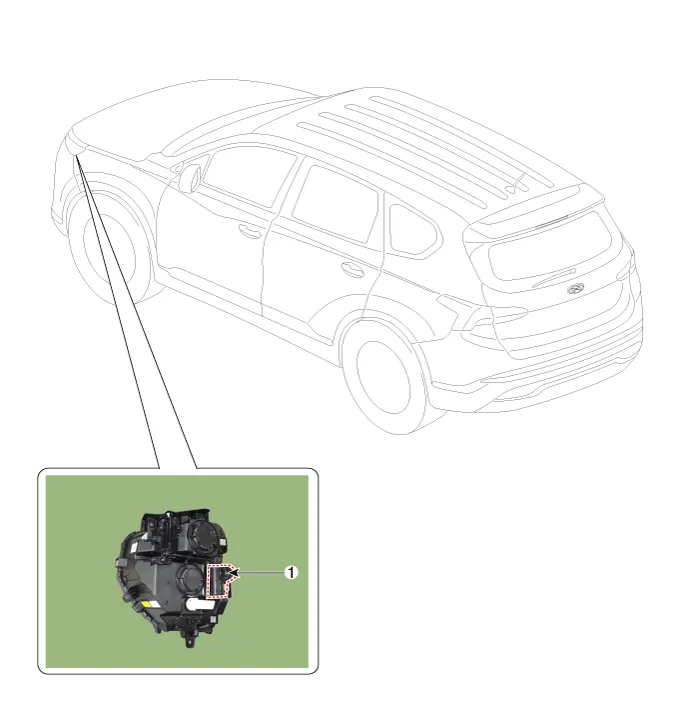

Component Location

1. Head lamp leveling actuator

Head Lamp Leveling Switch. Schematic diagrams

Circuit diagram

Head Lamp Leveling Switch. Repair procedures

Inspection

1.	Disconnect the negative (-) battery terminal.

2.	Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel")

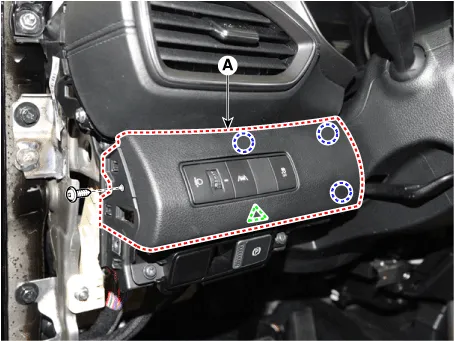

3.	Loosen the mounting screw, remove the crash pad garnish [LH] (A).

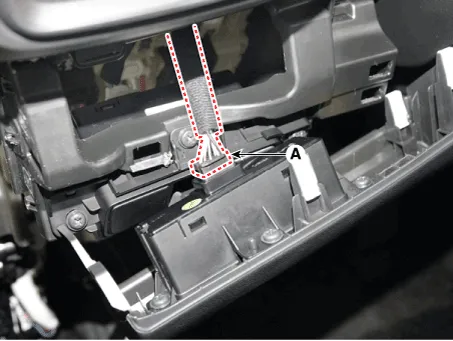

4.	Press the lock pin, separate the connector (A).

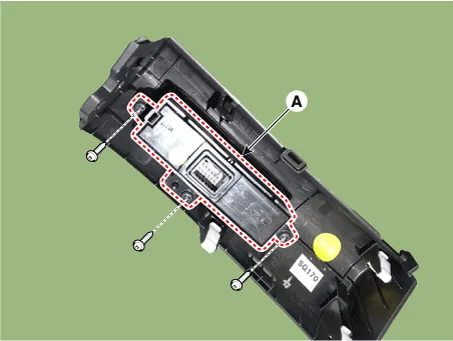

5.	Remove the rheostat switch (A) after loosening mounting screws.

Installation

1.	Install the rheostat switch.

2.	Install the crash pad garnish [LH]

3.	Install the crash pad lower panel.

4.	Connect the negative (-) battery terminal.
