Hyundai Santa Fe (TM): Brake System / Stop Lamp Switch. Schematic diagrams

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Brake System / Brake System / Stop Lamp Switch. Schematic diagrams

Schematic Diagram

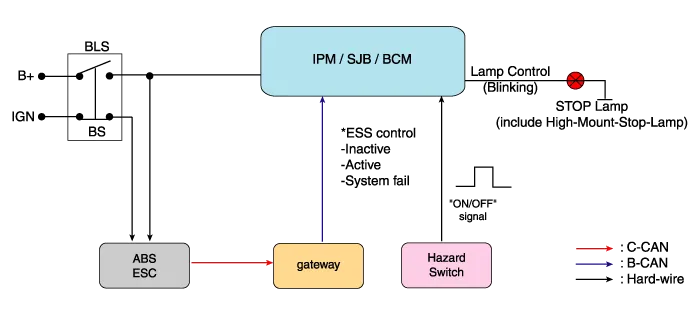

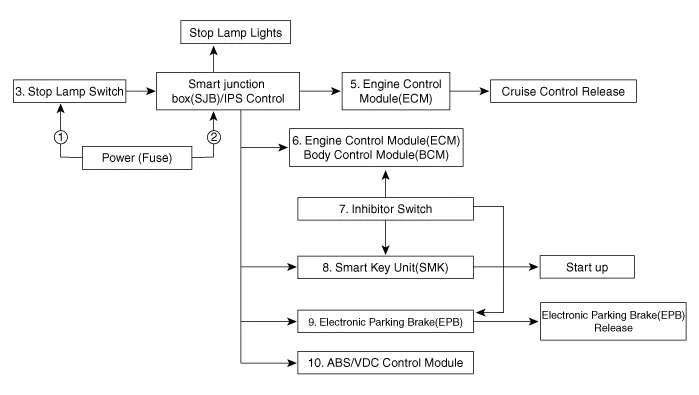

System circuit diagram

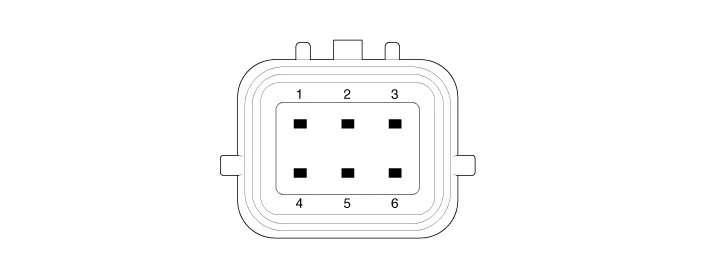

Terminal Function

Teminal
Description
1
 IGN1
2
 Engine Control Module (ECM)
3
 -
4
 B+
5
 Stop Lamp
6
 Gruound

    Components 1. Brake member assembly 2. Stop lamp switch 3. Brake pedal arm assembly 4. Brake pedal pad

    Adjustment 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the lower crash pad.
