Hyundai Santa Fe (TM): ETC (Electronic Throttle Control) System / Specifications

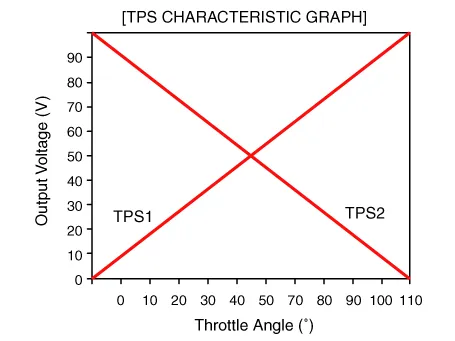

| Specification |
|
Throttle Angle (°) |
Output Voltage (V) |
|
|
TPS1 |
TPS2 |
|
|
0 |
0.0 |
5.0 |
|
10 |
0.48 |
4.52 |
|
20 |
0.95 |
4.05 |
|
30 |
1.43 |
3.57 |
|
40 |
1.90 |
3.10 |
|
50 |
2.38 |
2.62 |
|
60 |
2.86 |
2.14 |
|
70 |
3.33 |
1.67 |
|
80 |
3.81 |
1.19 |
|
90 |
4.29 |
0.71 |
|
100 |
4.76 |
0.24 |
|
105 |
5.0 |
0 |
|
C.T (6 - 15°) |
0.29 - 0.71 |
4.29 - 4.71 |
|
W.O.T (93 - 102°) |
4.43 - 4.86 |
0.14 - 0.57 |
|
Item |
Sensor Resistance (kΩ) |
|
TPS1 |
0.875 - 1.625 [20°C (68°F)] |
|
TPS2 |
0.875 - 1.625 [20°C (68°F)] |
|
Item |
Specification |
|
Coil Resistance (Ω) |
1.2 - 1.8 [20°C (68°F)] |
Fail-Safe Mode Item Fail-Safe ETC Motor Throttle valve stuck at 5° TPS TPS 1 fault Replace it with TPS2 TPS 2 fault Replace it with TPS1 TPS 1, 2 fault Throttle valve stuck at 5° APS TPS 1 fault Replace it with TPS2 TPS 2 fault Replace it with TPS1 TPS 1, 2 fault Throttle valve stuck at 5° • When throttle value is stuck at 5°, engine speed is limited at below 1,500rpm and vehicle speed at maximum 40 - 50 km/h (25 - 31 mph).
