Hyundai Santa Fe (TM): Front View Camera System / Front View Camera Unit. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Advanced Driver Assistance System (ADAS) / Front View Camera System / Front View Camera Unit. Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.

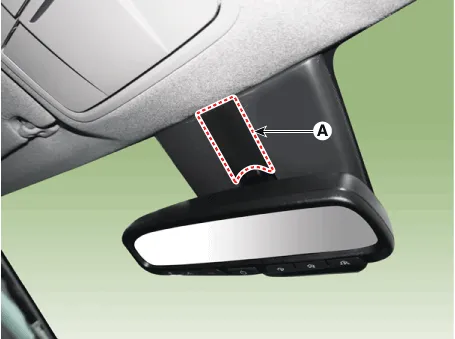

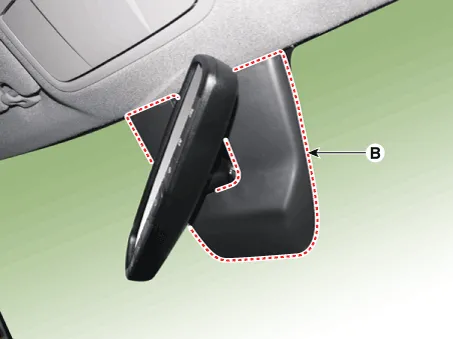

Remove the inside rear view mirror cover (A) and front view camera cover (B).
3.

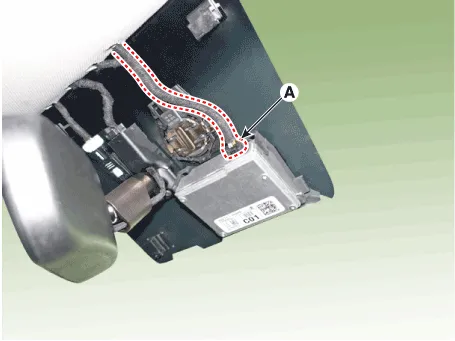

Disconnect the front view camera unit connector (A).
4.

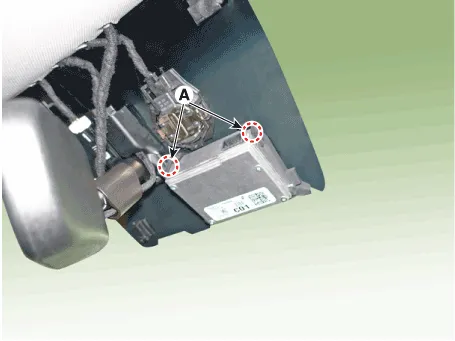

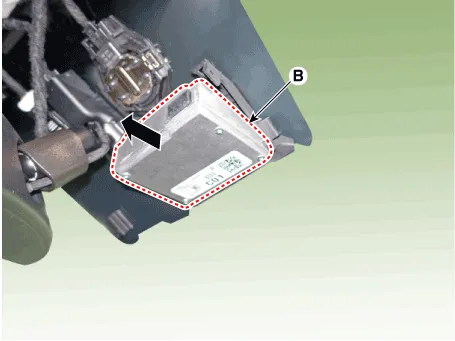

Separate the fixed points (A) of coupler, remove the front view camera (B).
Installation

•
Perform the camera calibration in the following case.
(Refer to Front View Camera System - "Repair Procedure")
–
If the front view camera is replaced with a new one.
–
If the front view camera is removed and mounted.
–
If the front view camera coupler of the windshield glass is deformed.
–
If the windshield glass is changed.
–
When a failure code (System Out of Calibration) occur.
1.
Install in the reverse order of removal.
2.
When if replacing the front view camera with a new one, perform the "Variant Coding" procedure by using the Diagnostic Tools.
3.
Perform the front view camera unit calibration.
(Refer to Repair procedures - "Service Point Target Auto Calibration (SPTAC)")

    Circuit Diagram

    Circuit Diagram
