Hyundai Santa Fe (TM): Automatic Transaxle Control System / Shift Lever. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Automatic Transaxle System (SBC) / Automatic Transaxle Control System / Shift Lever. Repair procedures

Removal
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Remove the shift knob & boots.
(1)
Separate the shift boots (A).
(2)

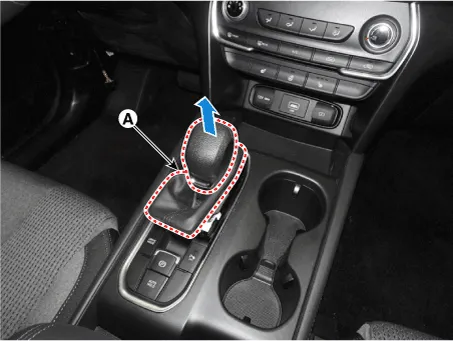

Pull the shift knob and then removing the shift knob & boots (A).
3.
Remove the floor console assembly.
(Refer to Body - "Floor Console")
4.

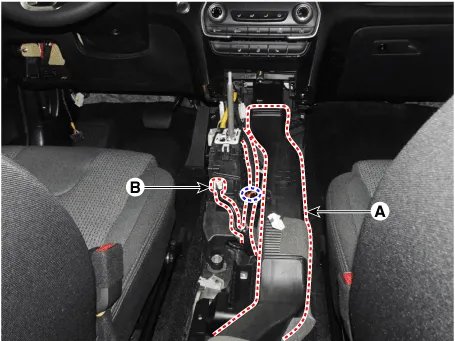

Remove the floor console air duct (A) and then disconnect the connector (B).
5.
Remove the snap pin (A) and then separate the shift cable (B).


•
When assembling shift cable, the projection (A) must face upwards.

•
When assembling the snap pin, be careful about the correct direction.
- The band portion (A) must point to the front of the vehicle.
- The band portion (A) must point outwards.

6.
Remove the bolts and then shift lever assembly (A).
Tightening torque :
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Installation
1.
To install, reverse the removal procedure.

•
Install the cable after placing the shift lever and the manual control lever in the N position.
