Hyundai Santa Fe (TM): Motor Driven Power Steering / Schematic diagrams

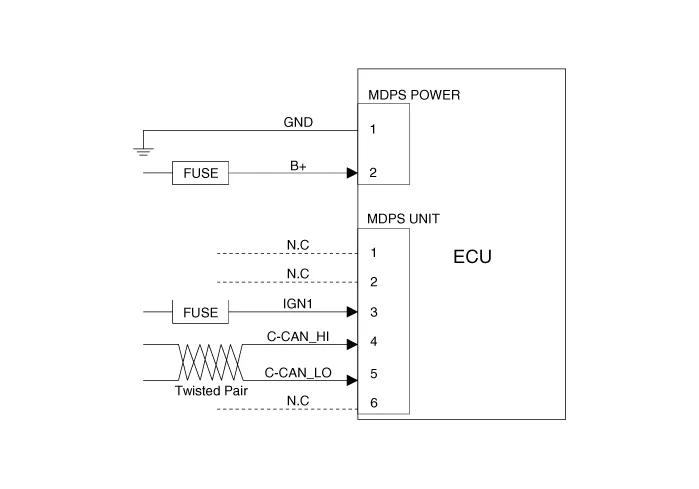

| Schematic Diagrams |
|
Type |
Pin No |
Description |
|

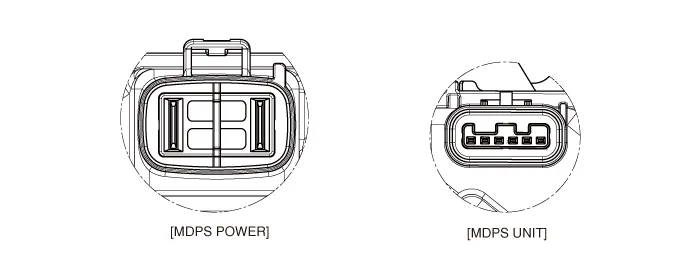

MDPS Power |
1 |
Battery - |
|
2 |
Battery + |
|
|
MDPS Unit |
1 |
- |
|
2 |
- |
|
|
3 |
IG 1 |
|
|
4 |
C-CAN [High] |
|
|
5 |
C-CAN [Low] |
|
|
6 |
- |
Description MDPS (Motor Dirven Power Steering) system uses an electric motor to assist the steering force and it is an engine operation independent steering system.
A/S Repair produres [C-MDPS] MDPS System A/S Workflow â‘ Noise / malfunction Inspection â‘¡ Warning lamp (DTC) / CAN Line error 2 - 1 Checking Connectors and Wiring 1.
