Hyundai Santa Fe (TM): Body Electrical System / Fuel Filler Door
Components and components location
| Component Location |

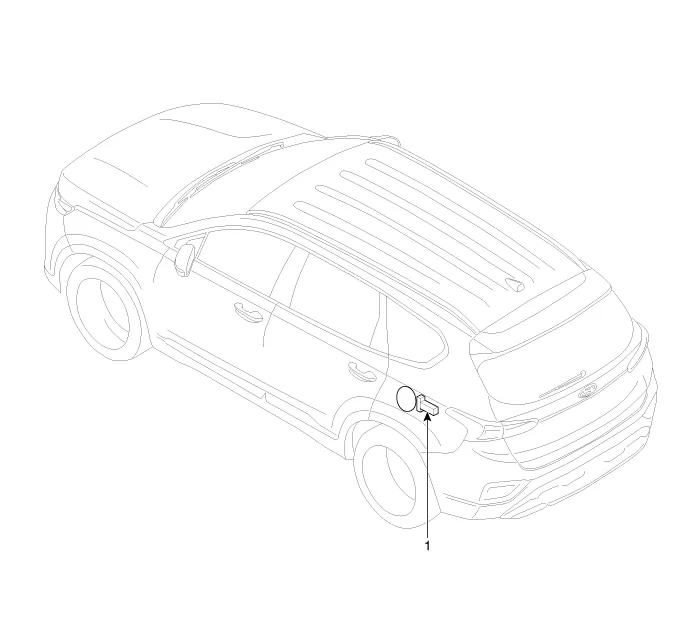

| 1. Fuel filler
door release actuator |
Fuel Filler Door Release Actuator. Repair procedures
| Removal |
| 1. |
Remove the left luggage side trim.
(Refer to Body - "Luggage Side Trim")
|
| 2. |

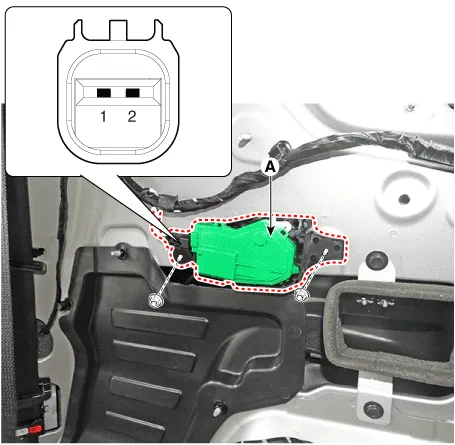

Disconnect the connector (A) and then remove the release actuator (B).
|
| 3. |

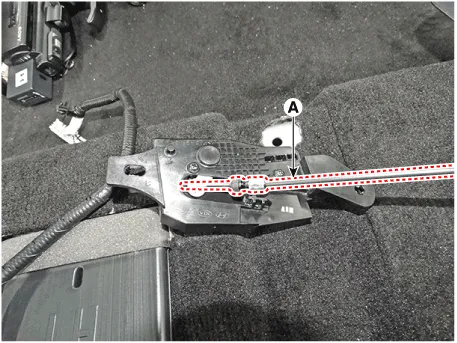

Disconnect the cable (A) and then remove the release actuator.
|
| 4. |
Check for continuity between terminal No. 1 and No. 2. If there is no
continuity, replace the fuel filler door release actuator (A).
|
