Hyundai Santa Fe (TM): Brake System / Rear Disc Brake. Components and components location

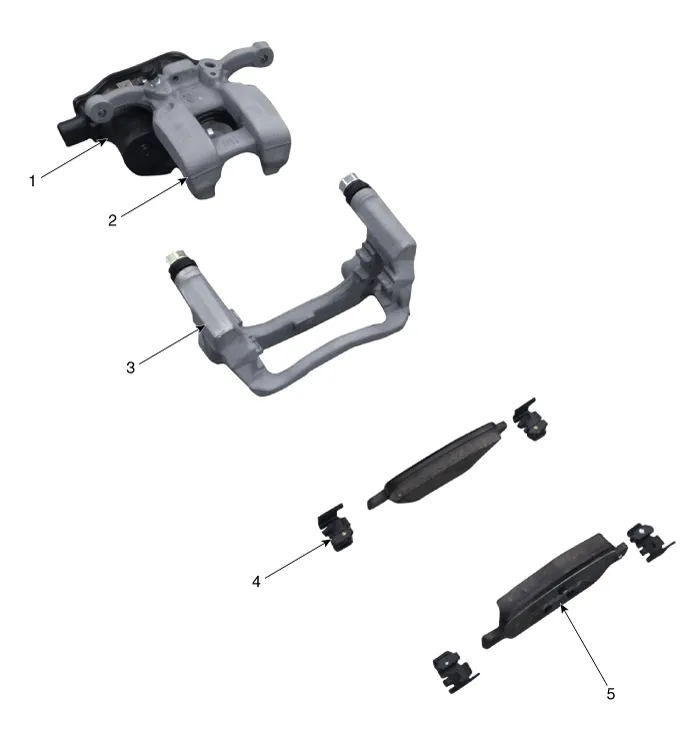

| Components |
| 1. EPB actuator 2. Caliper body 3. Caliper carrier |
4. Pad retainer 5. Brake pad |
Removal • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
Removal • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
