Hyundai Santa Fe (TM): Body Electrical System / AC Inverter System
- Description and operation
- Components and components location

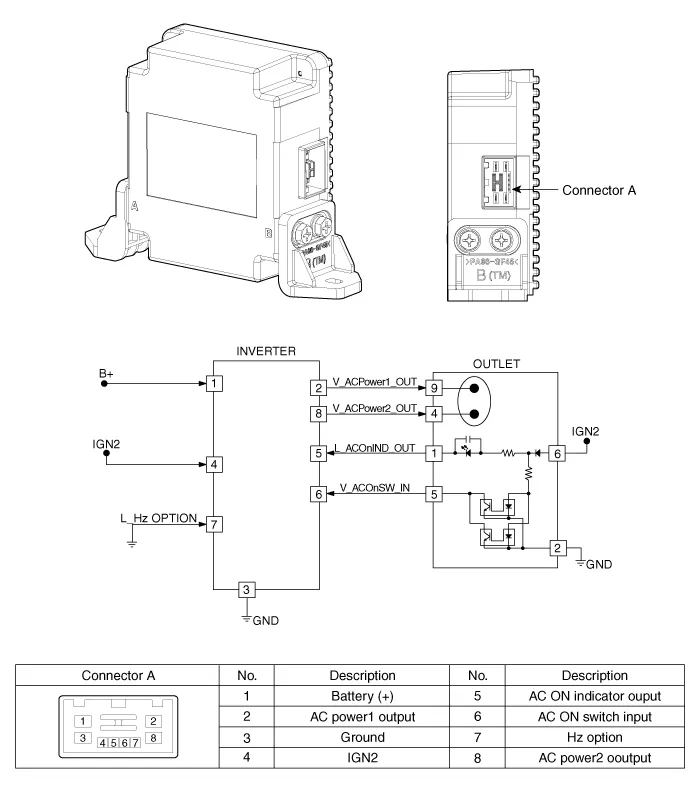

- Specifications

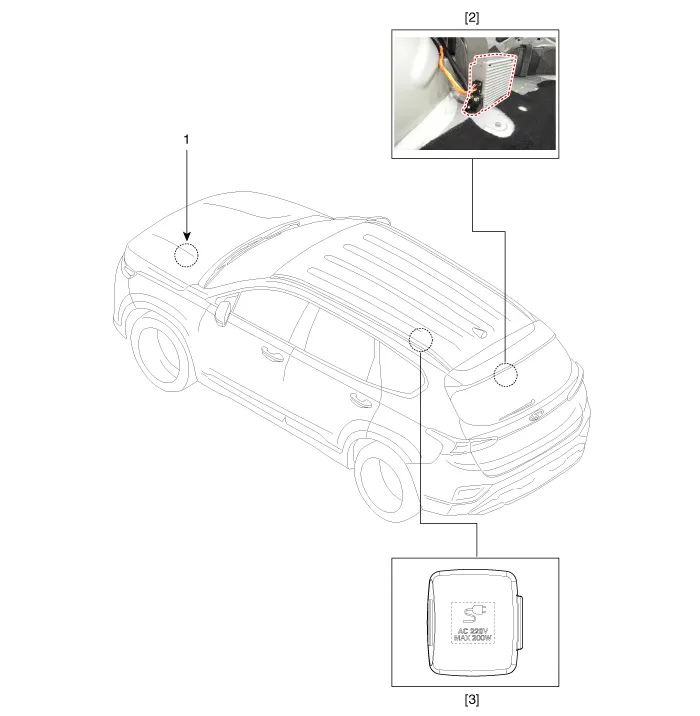

- AC Inverter Unit. Components and components location

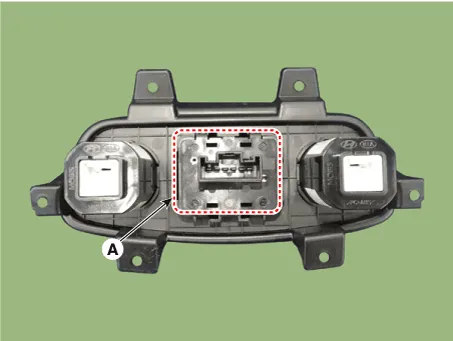

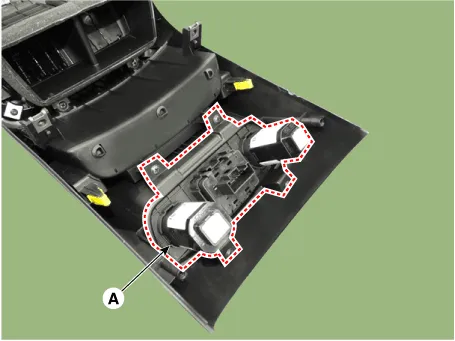

- AC Inverter Unit. Repair procedures
- AC Inverter Oultet. Repair procedures
Inspection 1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.

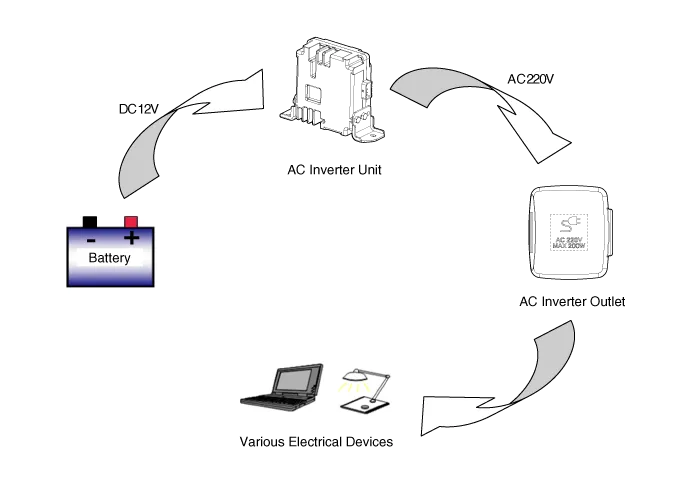

Description An inverter is a device that transforms the DC voltage from the battery into an AC voltage (220 V). The inverter can power various electrical devices that consume 200 W or less, including mobile phone or notebook rechargers, audio systems, and TVs.
Other information:
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Auto Defogging Actuator. Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the auto defogging connector. 3. Verify that the auto defogging actuator operates to the open position when connecting 12V to terminal 3 and grounding terminal 6.
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Heater & A/C Control Unit (DATC). Repair procedures
Self Diagnosis 1. Self-diagnosis process. • When operating the self-diagnostics, the below fault(self-diagnostics code) will blink at 0.
