Hyundai Santa Fe (TM): Floor Console / Rear Console Cover. Components and components location

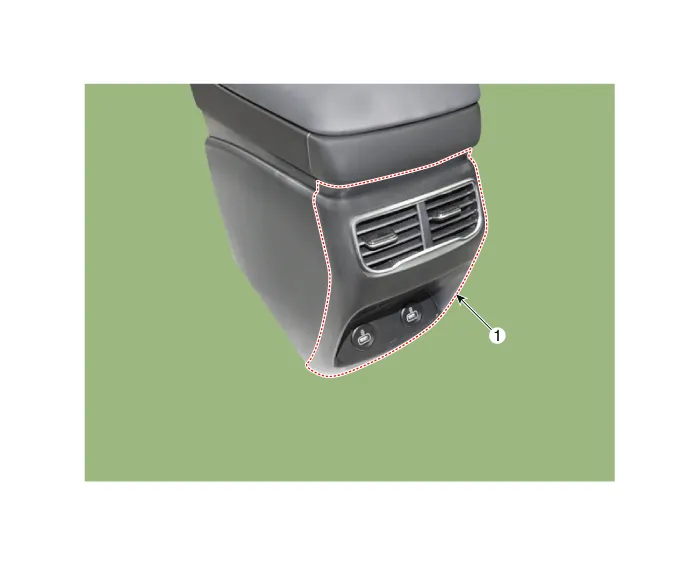

| Component Location |
| 1. Rear Console
Cover |
Replacement [Rear Floor Console Assembly] • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Replacement • Put on gloves to prevent hand injuries.
