Hyundai Santa Fe (TM): Body (Interior and Exterior) / Floor Console
- Components and components location

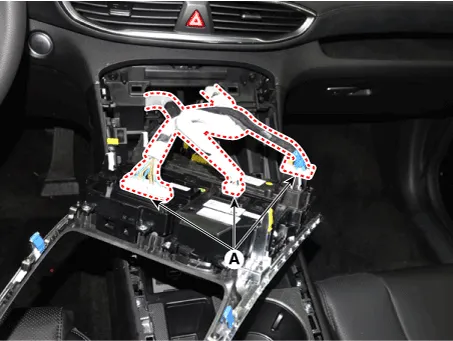

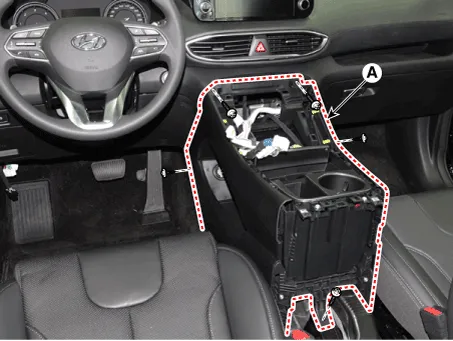

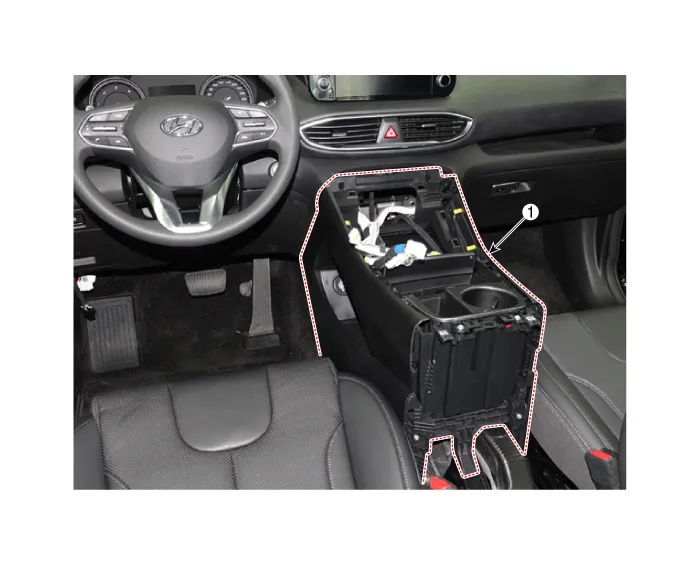

- Floor Console Assembly. Components and components location

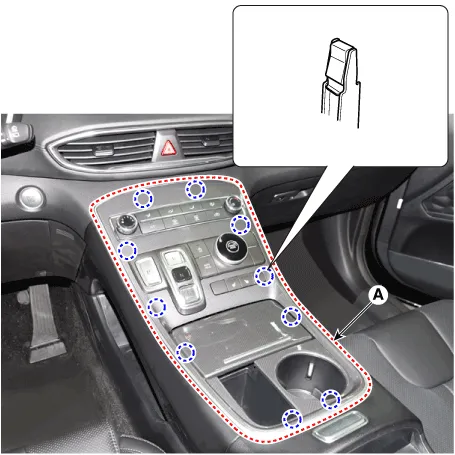

- Floor Console Assembly. Repair procedures

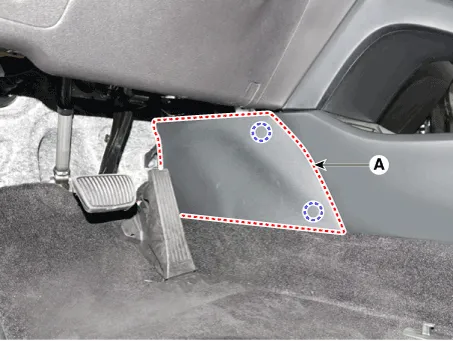

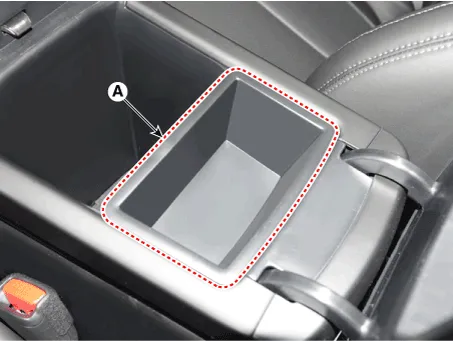

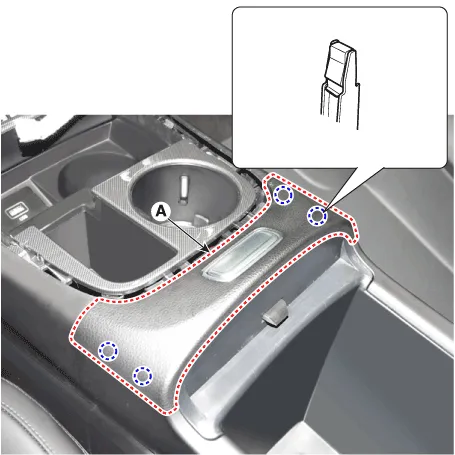

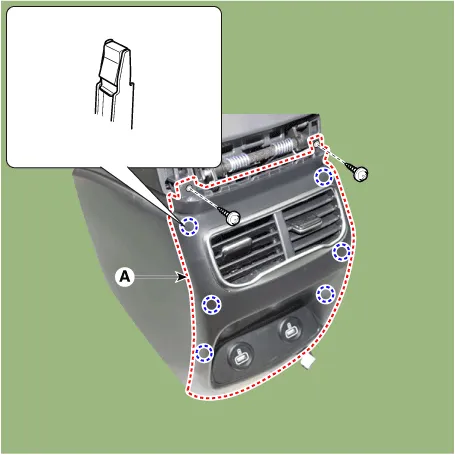

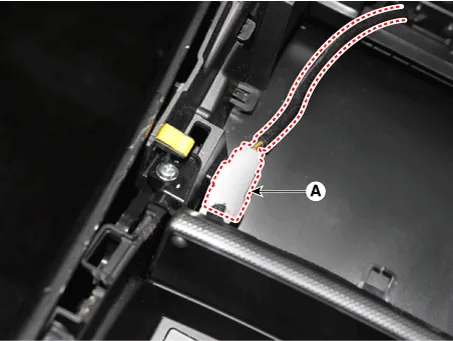

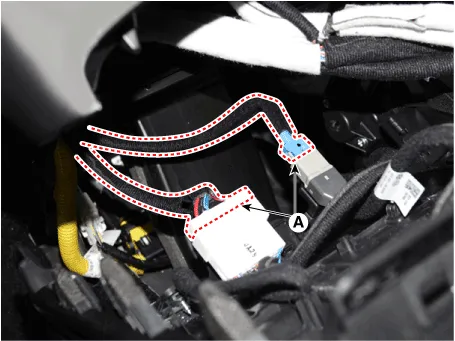

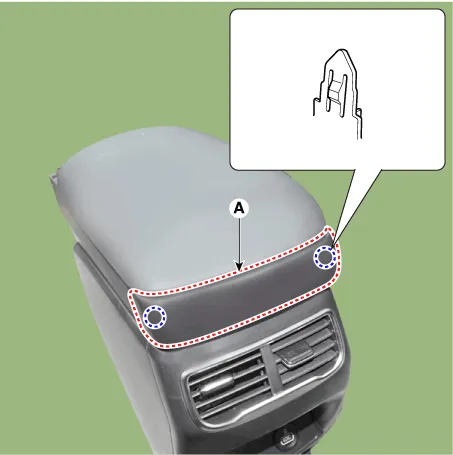

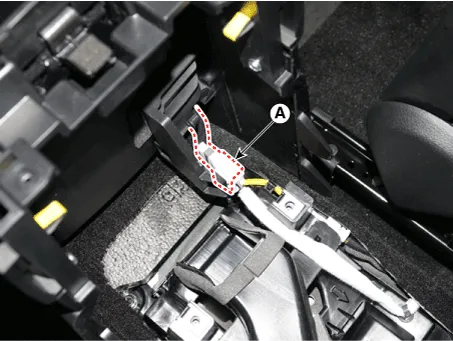

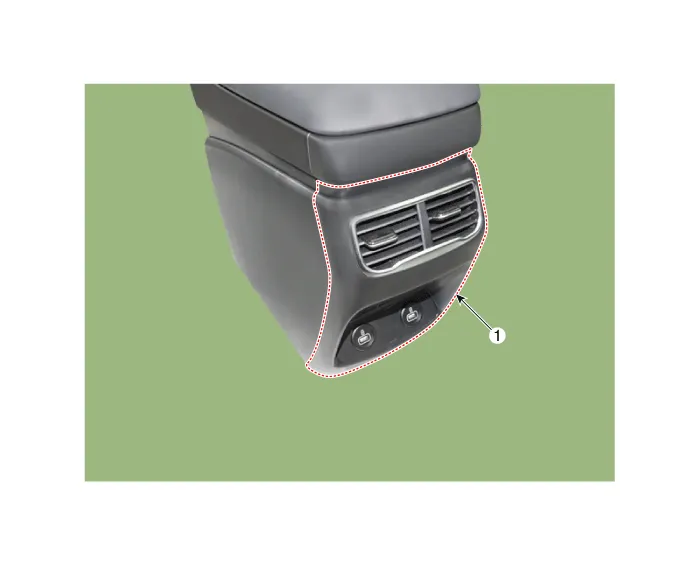

- Rear Console Cover. Components and components location

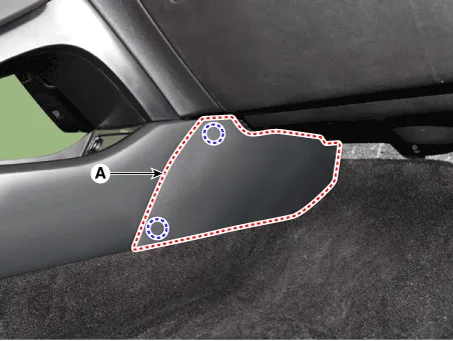

- Rear Console Cover. Repair procedures

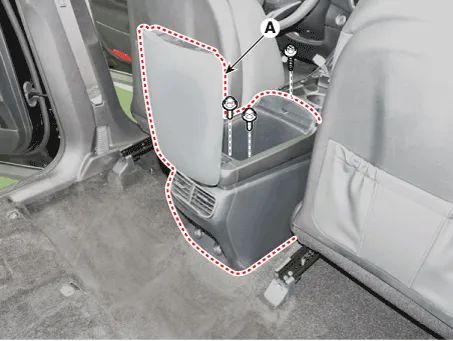

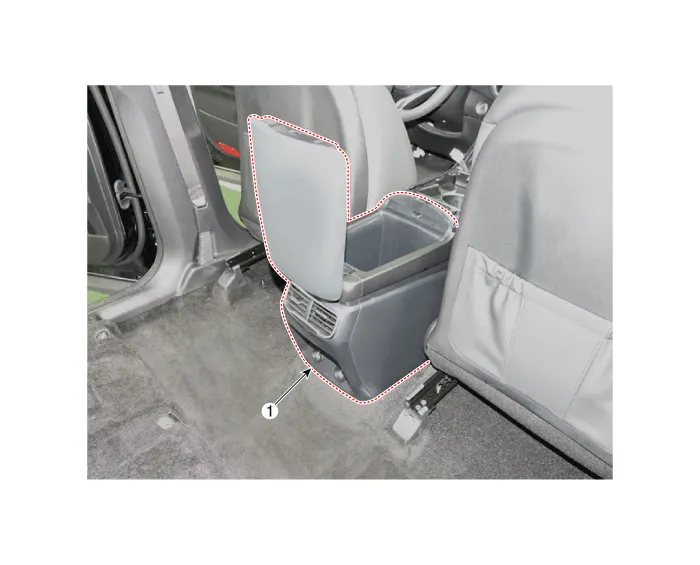

- Console Armrest. Components and components location
- Console Armrest. Repair procedures

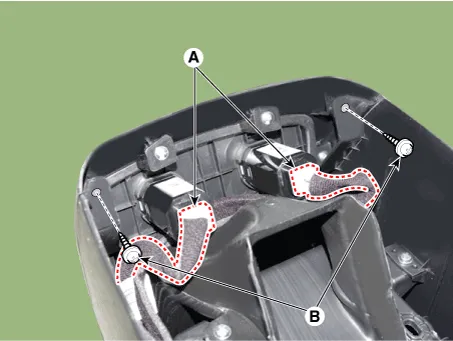

Replacement 1. Remove the cap and the nuts, and then remove the wiper arm (A). Tightening torque : 22.

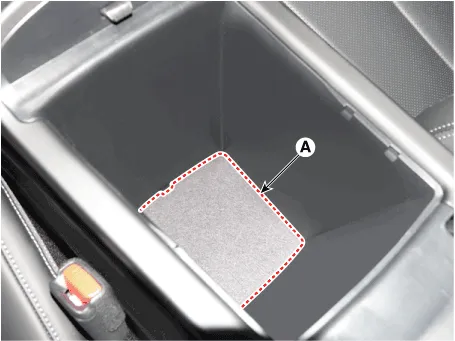

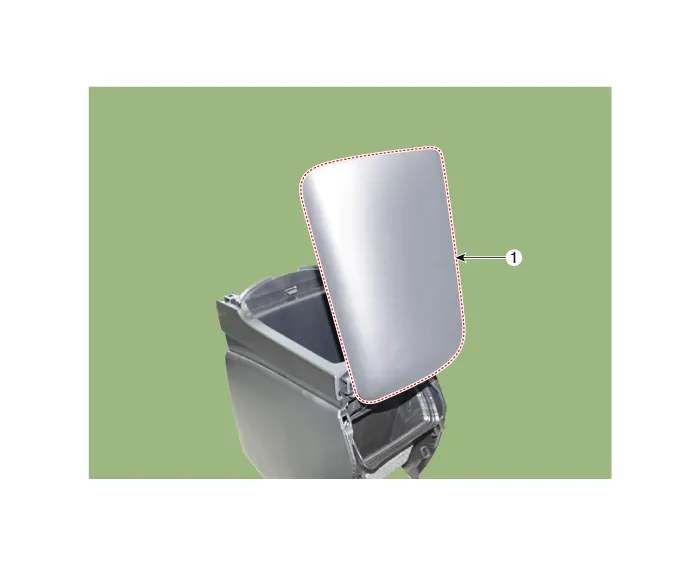

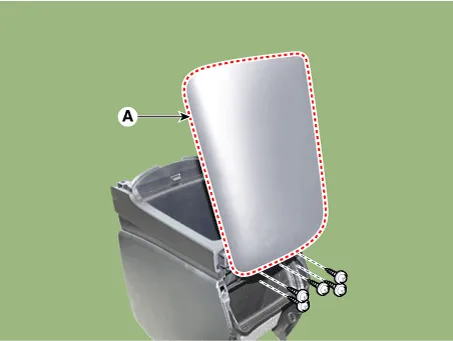

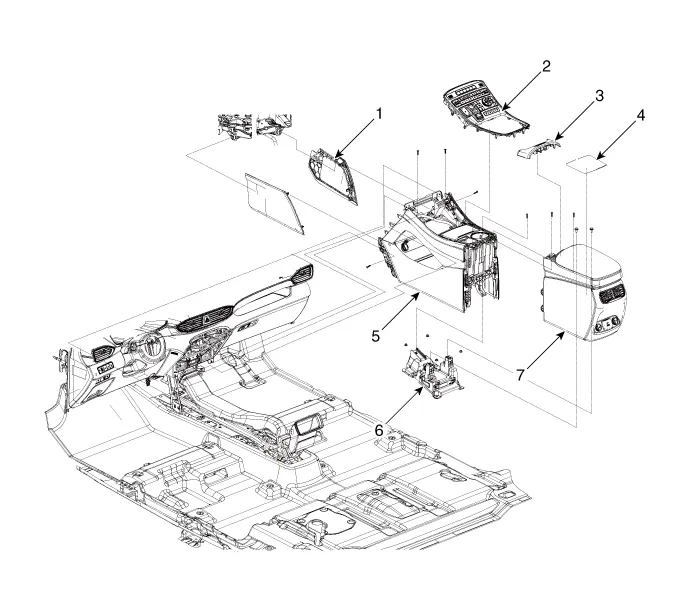

Components 1. Floor console side cover 2. Floor console upper cover 3. Console armrest lock assembly 4. Storage box mat 5.
