Hyundai Santa Fe (TM): Floor Console / Rear Console Cover. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Floor Console / Rear Console Cover. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the rear console assembly.
(Refer to Floor Console - "Floor Console Assembly")
2.

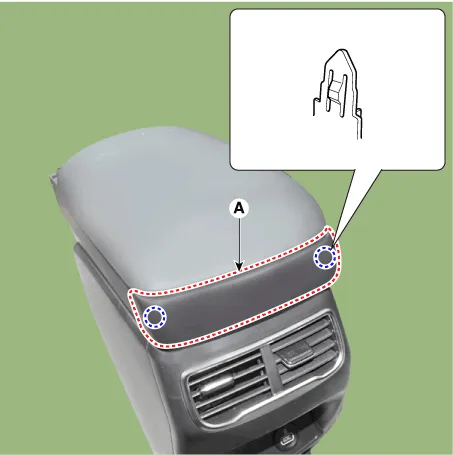

Remove the rear console upper cover (A).
3.

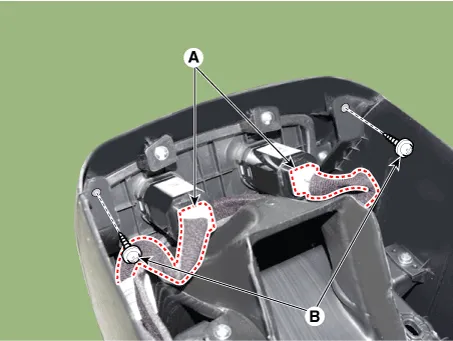

Press the lock pin, separate the connectors (A) and then loosen the mounting screws (B).
4.

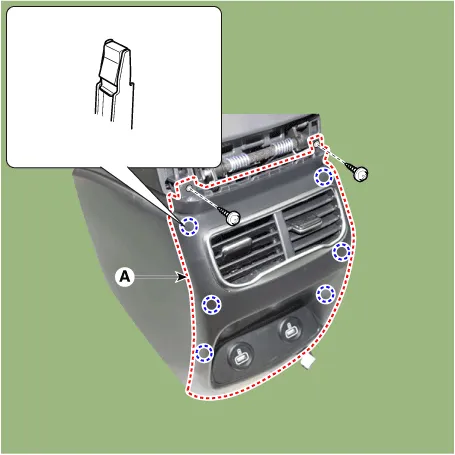

Loosen the mounting screws, remove the rear console cover (A).
5.
To install, reverse removal procedure.

•
Make sure the connector is connected properly.
•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Rear Console Cover

    Component Location 1. Console Armrest
