Hyundai Santa Fe (TM): Floor Console / Floor Console Assembly. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Floor Console / Floor Console Assembly. Repair procedures

Replacement
[Rear Floor Console Assembly]

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.

•
Take care not to bend or scratch the trim and panels.
1.

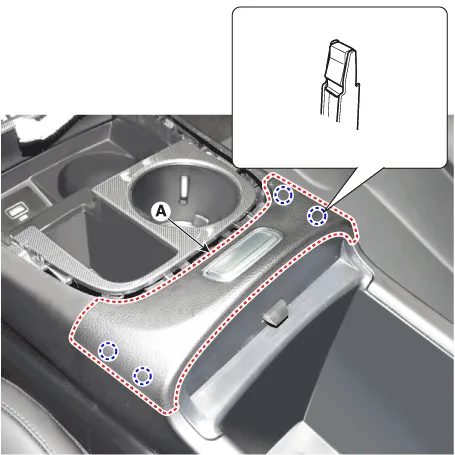

Remove the console upper cover (A).
2.

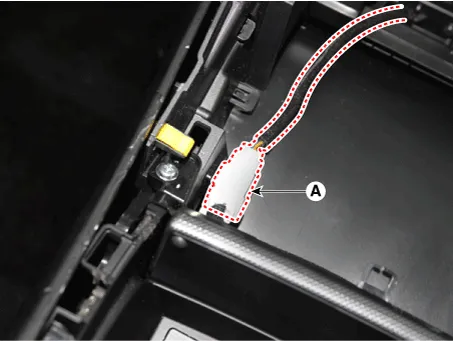

Press the lock pin, separate the connectors (A).
3.
Remove the console armrest lock assembly (A).
4.

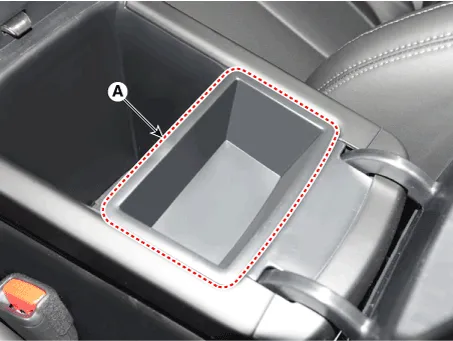

Remove the console armrest tray (A).
5.

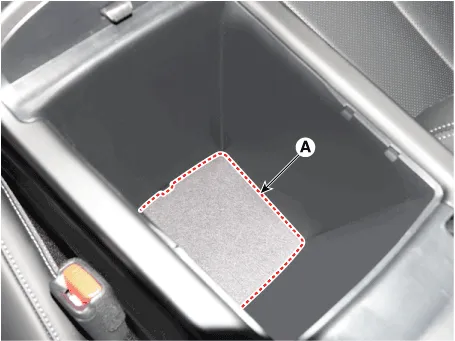

Remove the storage box mat (A).
6.
Loosen the mounting bolts and screw, remove the rear floor console assembly (A).
7.

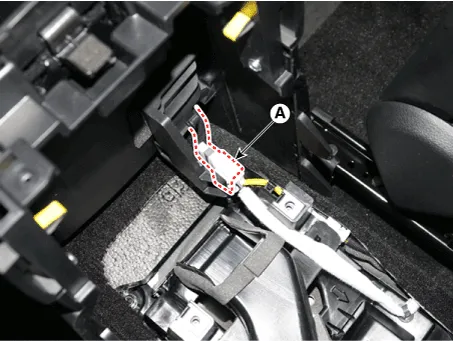

Press the lock pin, separate the connector (A).
8.
To install, reverse removal procedure.

•
Make sure the connector is connected properly.
•
Replace any damaged clips (or pin-type retainers).
[Front Floor Console Assembly]

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.

•
Take care not to bend or scratch the trim and panels.
1.

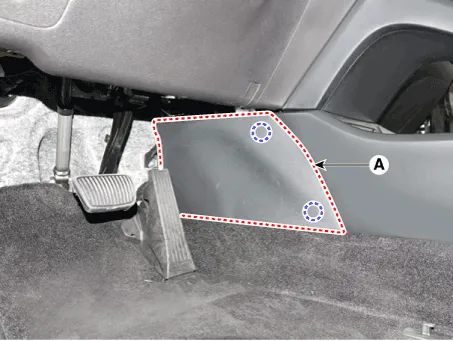

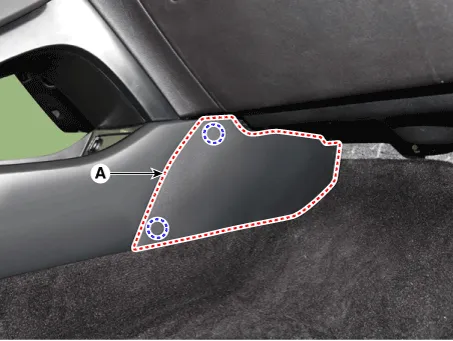

Remove the console side cover (A).
[LH]

[RH]
2.
Press the lock pin, separate the connector (A).
3.

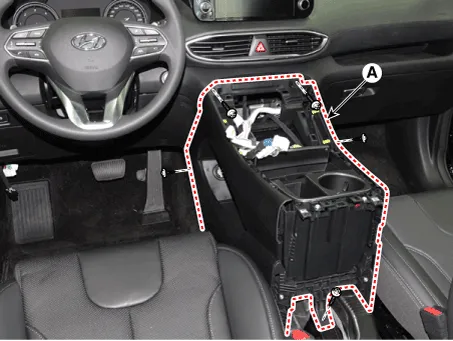

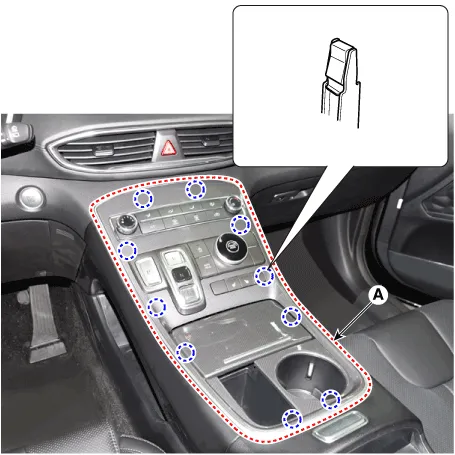

Loosen the mounting screws, remove the front floor console assembly (A).
4.

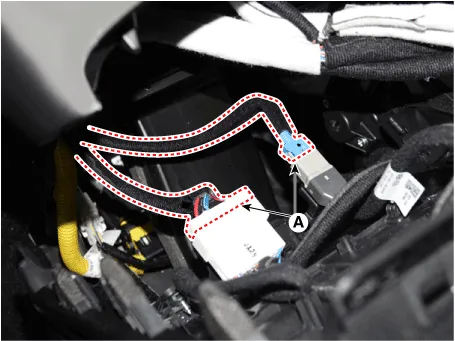

Press the lock pin, separate the connectors (A).
5.
To install, reverse removal procedure.

•
Make sure the connector is connected properly.
•
Replace any damaged clips (or pin-type retainers).

    Component Location (1) 1. Front Console Assembly Component Location (2) 1.

    Component Location 1. Rear Console Cover
