Hyundai Santa Fe (TM): Rear Suspension System / Rear Assist Arm. Repair procedures
| Removal |
| 1. |
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
|
| 2. |

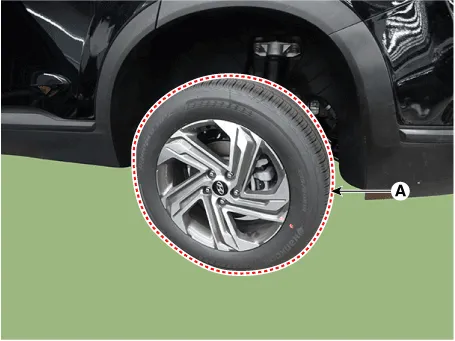

Remove the rear wheel and tire (A) from rear hub.
|
| 3. |

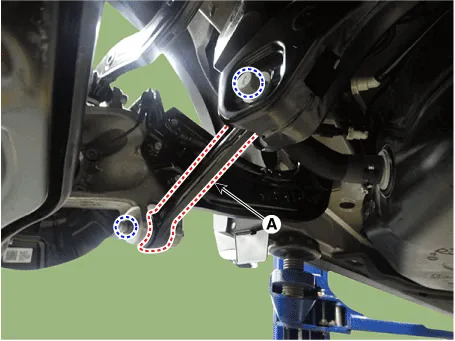

Remove the rear assist arm (A) after loosening the mounting bolts and
nuts.
|
| Inspection |
| 1. |
Check the bushing for wear and deterioration.
|
| 2. |
Check for all bolts and nuts.
|
| Installation |
| 1. |
To install, reverse the removal procedures.
|
| 2. |
Check the alignment.
(Refer to Suspension System - "Alingment")
|
Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2.
Removal 1. Raise the vehicle, and make sure it is securely supported. 2. In the case of 4WD vehicle, remove the rear differential assembly.
