Hyundai Santa Fe (TM): Rear Suspension System / Rear Stabilizer Bar. Repair procedures

Removal

1.	Raise the vehicle, and make sure it is securely supported.

2.	In the case of 4WD vehicle, remove the rear differential assembly. (Refer to Driveshaft and axle - "Rear Differential Carrier")

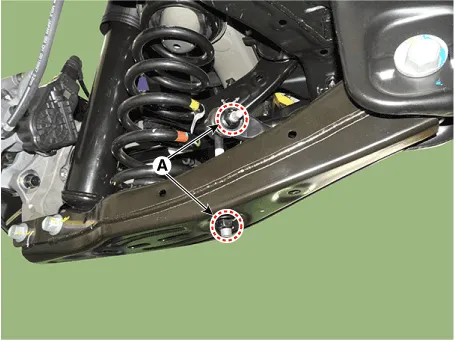

Remove the rear stabilizer link after loosening the mounting nut (A).

Tightening torque :

98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb-ft)

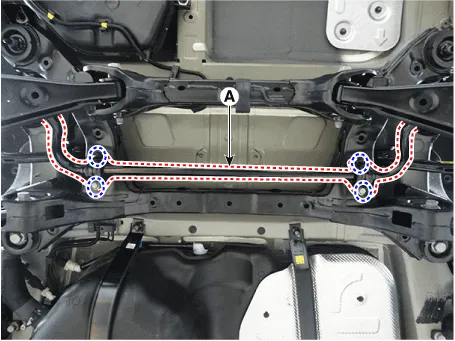

Remove the rear stabilizer bar (A) after loosening the mounting bolts.

Tightening torque :

58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb-ft)

Inspection

1.	Check the rear stabilizer bar for deformation.

2.	Check the rear stabilizer link ball joint for damage.

Installation

1.	To install, reverse the removal procedures.

2.	Check the alignment. (Refer to Suspension System - "Alingment")
