Hyundai Santa Fe (TM): Rear Suspension System / Trailing Arm. Repair procedures
| Removal |
| 1. |
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
|
| 2. |

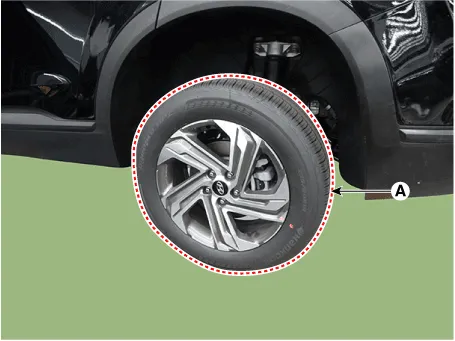

Remove the rear wheel and tire (A) from rear hub.
|
| 3. |

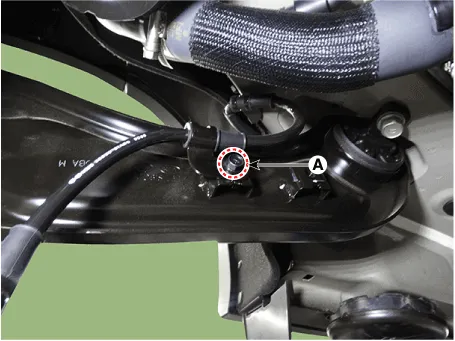

Loosen the wheel speed sensor cable bracket mounting nuts (A).
|
| 4. |

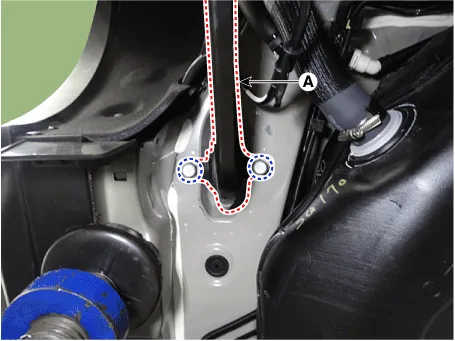

Loosen the wheel speed sensor cable bracket mounting bolts (A).
|
| 5. |

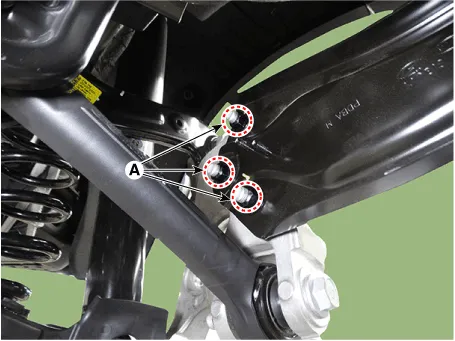

Loosen the trailing arm mounting bolts (A).
|
| 6. |

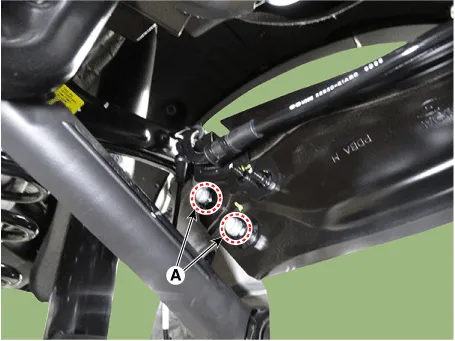

Remove the trailing arm (A) after loosening the mounting bolts.
|
| Inspection |
| 1. |
Check the bushing for wear and deterioration.
|
| 2. |
Check for all bolts and nuts.
|
| Installation |
| 1. |
To install, reverse the removal procedures.
|
| 2. |
Check the alignment.
(Refer to Suspension System - "Alingment")
|
