Replacement
1.
Remove the roof trim.
2.
Remove the movable glass.
(Panorama sunroof - refer "Movable Glass")
3.
Remove the roller blind.
(Panorama sunroof - refer "Roller Blind")
4.

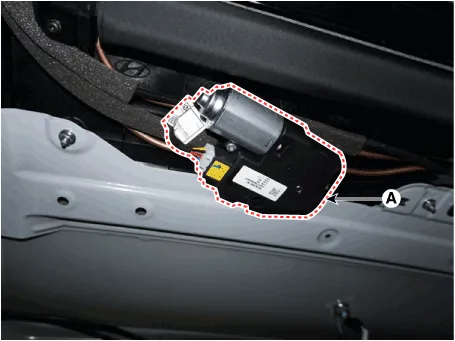

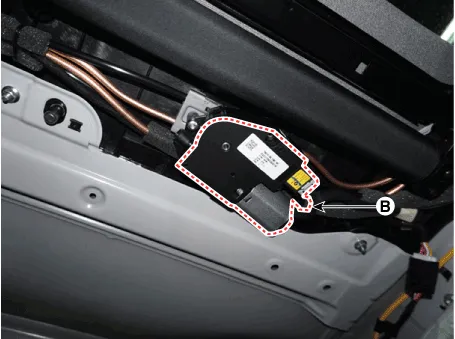

Remove the glass motor (A) and roller blind motor (B) loosening mounting screws.
5.

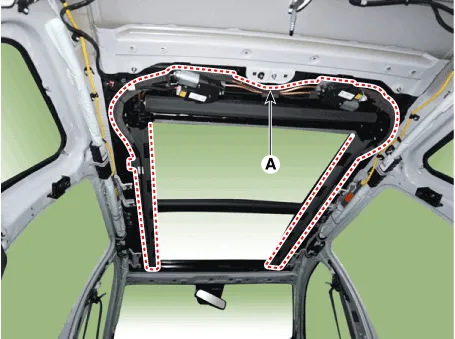

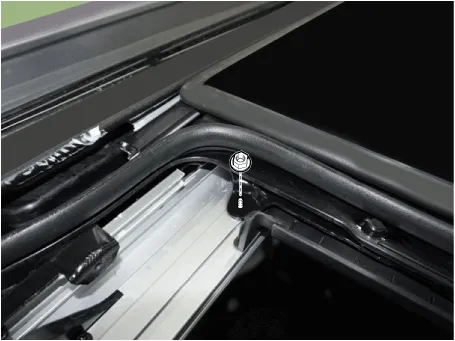

Loosen the mounting bolts and nuts, remove the mechanism assembly (A).
6.
To install, reverse the removal procedure.
