Hyundai Santa Fe (TM): Brake System / Master Cylinder. Components and components location
| Components |

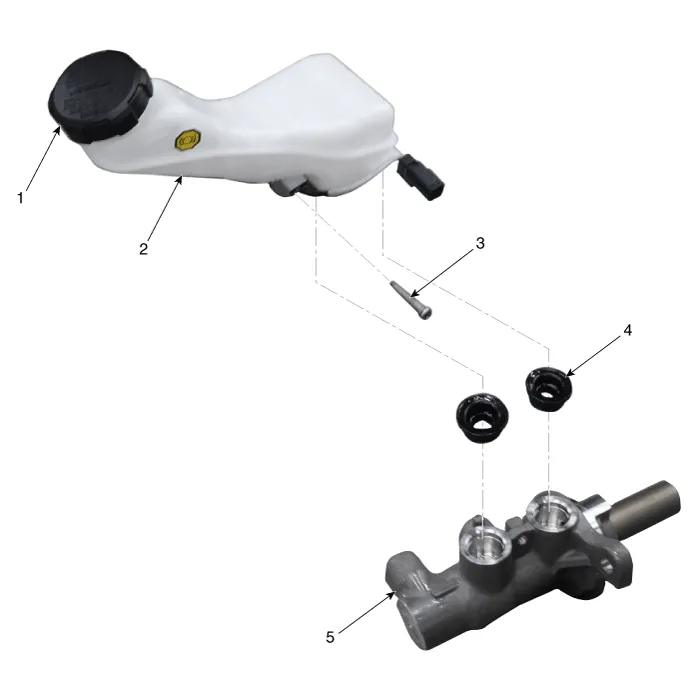

| 1. Reservoir
cap 2. Reservoir 3. Reservoir pin |
4. Grommet 5. Master cylinder |
Brake Booster Operating Test 1. Run the engine for one or two minutes, and then stop it. If the pedal depresses fully the first time but gradually becomes higher when depressed succeeding times, the booster is operating properly, if the pedal height remains unchanged, the booster is inoperative.
Removal 1. Turm ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the battery.
Other information:
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Receiver-Drier. Repair procedures
Replacement 1. Using a Lwrench, remove the cap (A) on the bottom of the receiver-drier. 2. Remove the receiver-drier (A) from condenser using a long nose plier. Check for crumbled receiver-drier and clogged bottom cap filter.
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Controller
Heater & A/C Control Unit (Manual). Components and components location Component Connector Pin Function Pin No Connector A Connector B 1 Battery Low 2 ISG B+ Common 3
