| Removal |
| 1. |
Turn the ignition switch OFF and disconnect the battery negative (-)
cable.
|
| 2. |
Remove the intake manifold.
(Refer to Engine Mechanical System - "Intake Manifold")
|
| 3. |

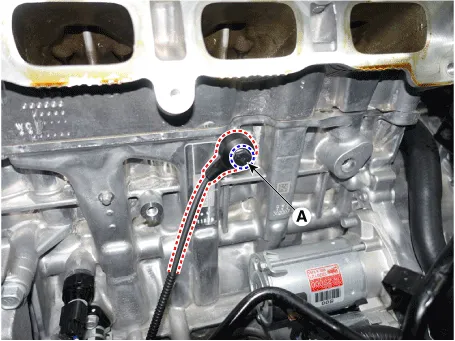

Remove the installation bolt (A), and then remove the sensor from the
cylinder block.
|
| Installation |
|
| 1. |
Installation is reverse of removal.
|
