Hyundai Santa Fe (TM): Engine Control System / Knock Sensor (KS). Schematic diagrams

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Engine Control/Fuel System / Engine Control System / Knock Sensor (KS). Schematic diagrams

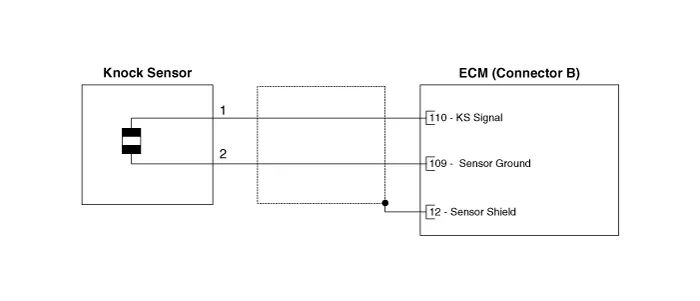

Circuit Diagram

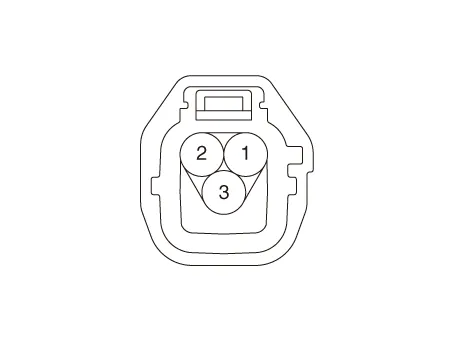

Harness Connector

    Specification Item Specification Capacitance (pF) 850 - 1,150

    Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2.
