| Removal |
| 1. |
Remove the front drive shaft.
(Refer to Driveshaft Assembly - "Front Driveshaft")
|
| 2. |
Remove the trans axle side joint.
(Refer to Driveshaft Assembly - "Transaxl Joint")
|
| 3. |
Remove the dynamic damper.
(Refer to Driveshaft Assembly - "Dynamic Damper")
|
| 4. |

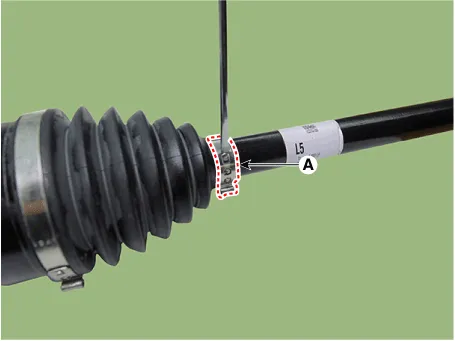

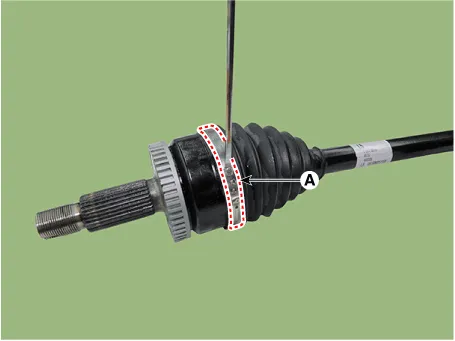

Remove the wheel side joint small diameter (A) and large diameter (B)
boot band using driver (-).
|
| 5. |

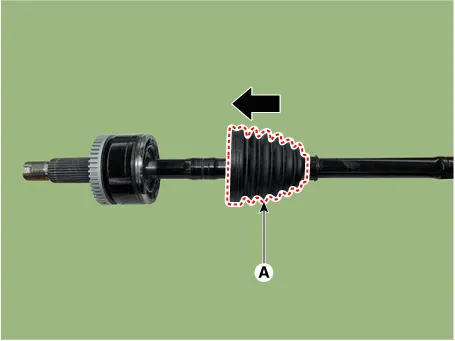

Remove the wheel side joint boot (A).
|
| 1. |
Remove the front drive shaft.
(Refer to Driveshaft Assembly - "Front Driveshaft")
|
| 2. |
Remove the trans axle side joint.
(Refer to Driveshaft Assembly - "Transaxl Joint")
|
| 3. |
Remove the dynamic damper.
(Refer to Driveshaft Assembly - "Dynamic Damper")
|
| 4. |

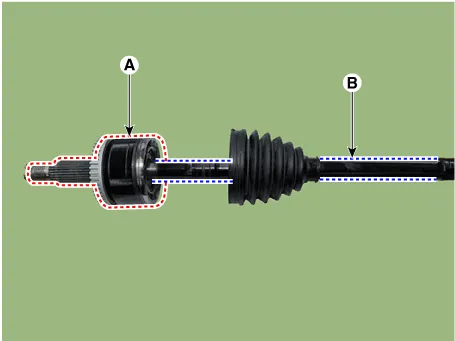

Replace the wheel side joint assembly (A) and shaft (B).
|
| Inspection |
| 1. |
Check the boot for water or foreign objects.
|
| 2. |
Replace any defective parts.
|
| Installation |
|
| 1. |

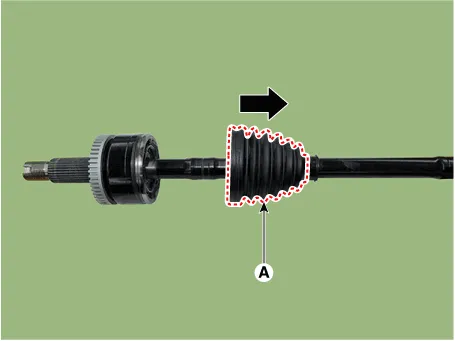

Install the new boot (A) in the direction of the arrow.
|
| 2. |

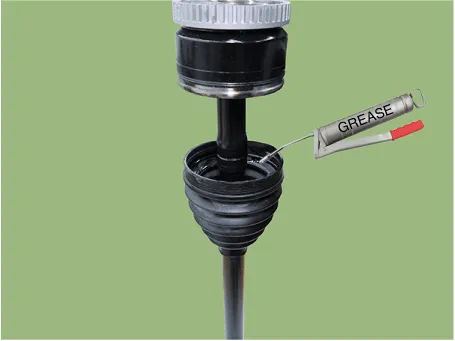

Apply the grease specified inside the boot.
|
| 3. |

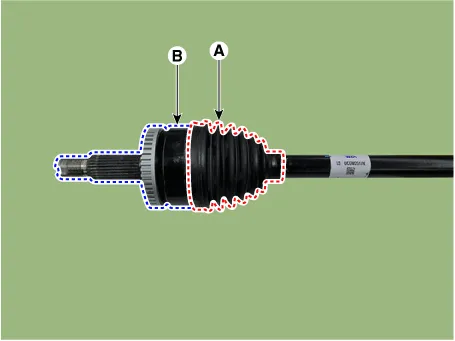

Install the wheel side boot (A) into the housing (B).
|
| 4. |

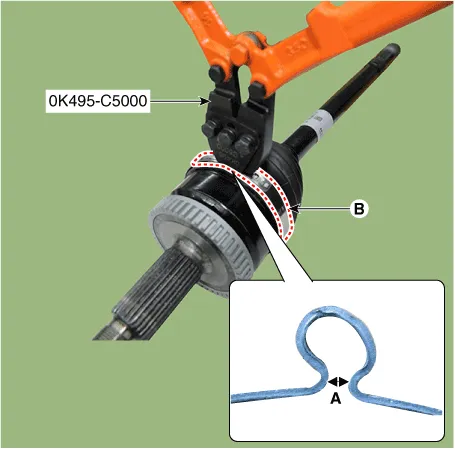

Install the large diameter boot band (B) using SST (0K495-C5000).
|
| 5. |

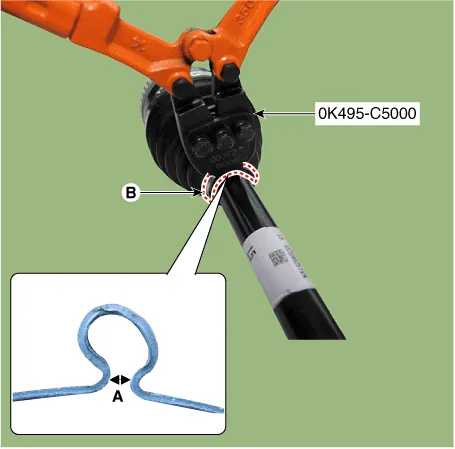

Install the small diameter boot band (B) using SST (0K495-C5000).
|
| 6. |
Install the dynamic damper. [If equipped]
(Refer to Driveshaft Assembly - "Dynamic Damper")
|
| 7. |
Install the transaxle side joint.
(Refer to Driveshaft Assembly - "Joint Assembly(Transaxle side)")
|
| 8. |
Install the front drive shaft.
(Refer to Driveshaft Assembly - "Front Driveshaft")
|
|
| 1. |
Replace the wheel side joint assembly (A) and shaft (B).
|
| 2. |
Remove the dynamic damper.
(Refer to Driveshaft Assembly - "Dynamic Damper")
|
| 3. |
Install the transaxle side joint.
(Refer to Driveshaft Assembly - "Joint Assembly(Transaxle side)")
|
| 4. |
Install the front drive shaft.
(Refer to Driveshaft Assembly - "Front Driveshaft")
|
Removal • Drive shaft joints require special grease, so do not add any other type of grease.
