Hyundai Santa Fe (TM): Front Radar System / Front Radar Unit. Components and components location

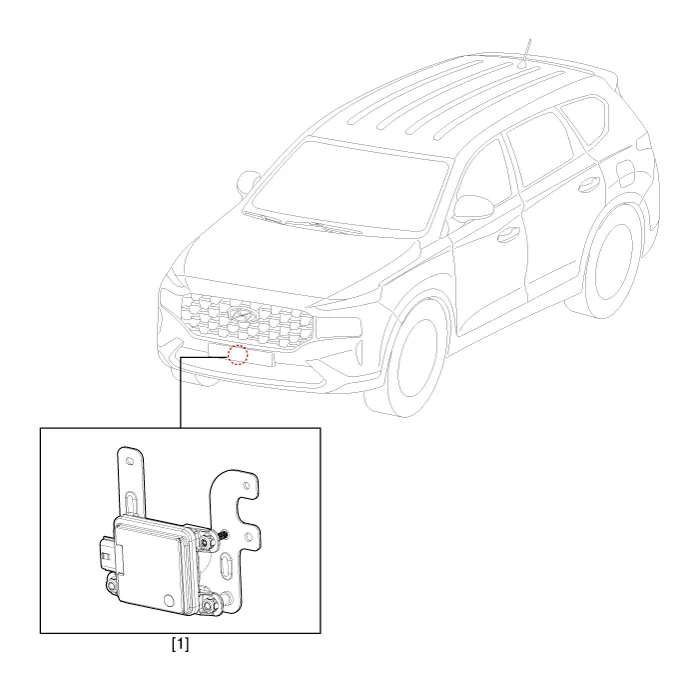

| Components Location |
| 1. Front radar
unit |
Components Location 1. Front radar unit 2. Smart cruise control switch 3. AVN Monitor
Specification Item Specification Power supply (V) 12 Operation voltage (V) 9 - 16
