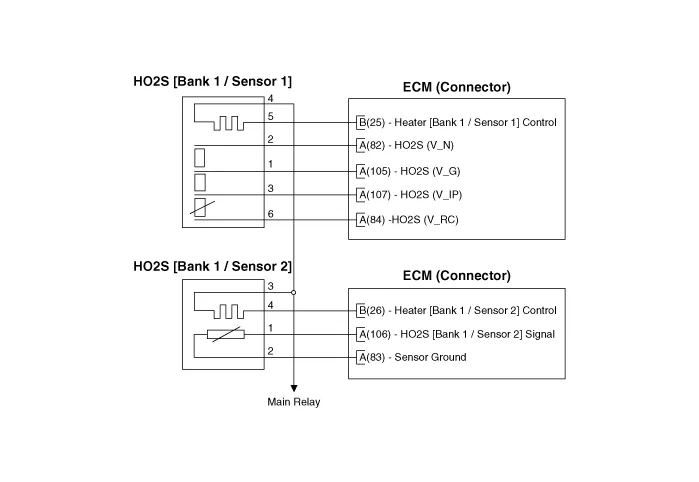

Hyundai Santa Fe (TM): Engine Control System / Heated Oxygen Sensor (HO2S). Schematic diagrams
| Circuit Diagram |

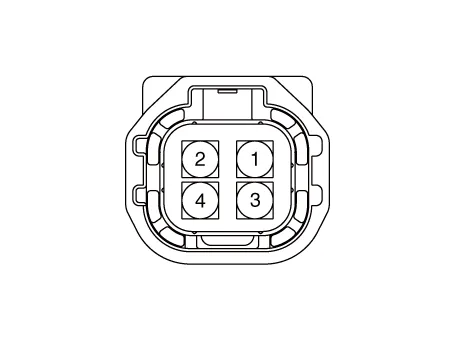

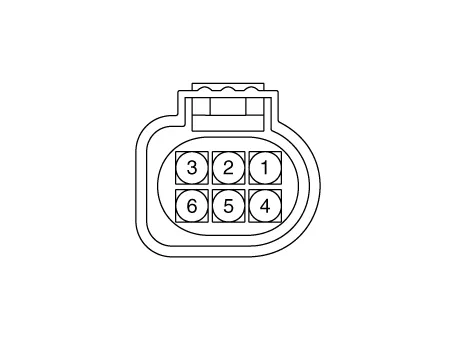

Specification HO2S [Bank 1 / Sensor 1] [Euro-V] Item Specification Heater Resistance (Ω) 2.
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the HO2S connector. 3.
