Hyundai Santa Fe (TM): Front Seat / Front Seat Cushion Cover. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Front Seat / Front Seat Cushion Cover. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.
Remove the front seat shield outer cover.
(Refer to Front Seat - "Front Seat Outer Cover")
3.
Remove the front seat shield inner cover.
(Refer to Front Seat - "Front Seat Inner Cover")
4.

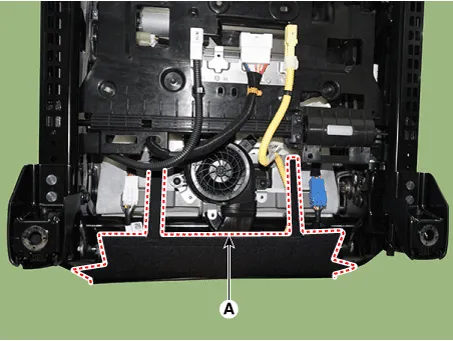

Remove the front seat lower protector (A).
5.

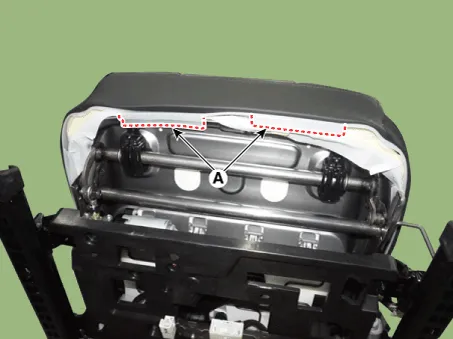

Remove the protector (A) from the front seat cushion frame.
[Lower]

[Upper]

[LH]

[RH]

6.

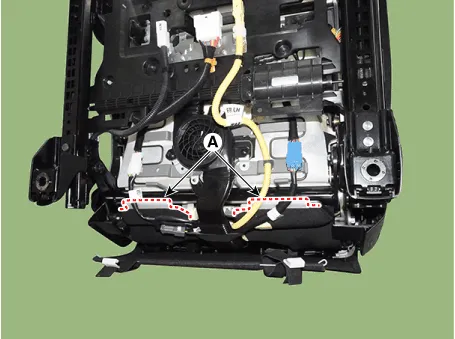

Press the lock pin and separate the front seat heater connector (A).
7.

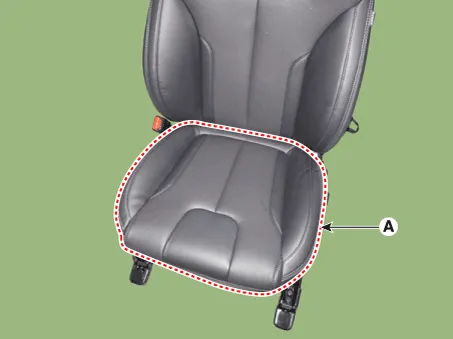

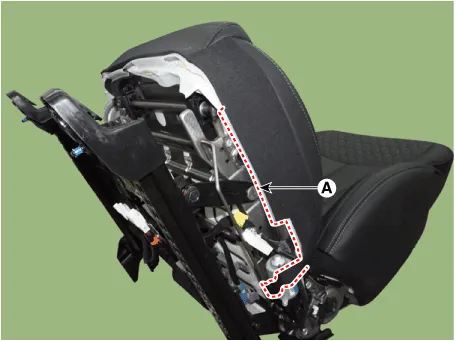

Remove the front seat cushion cover (A) from the front seat cushion frame.
8.

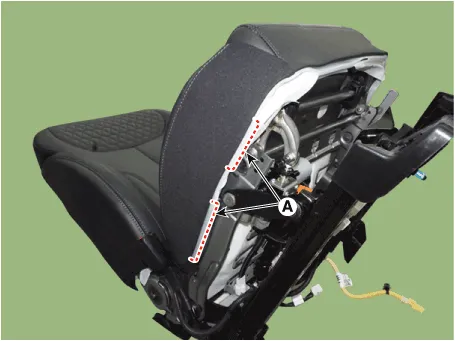

After removing the Velcro tape (A) inside the front seat cushion cover, remove the seat cushion cover (B).

9.
To install, reverse removal procedure.
